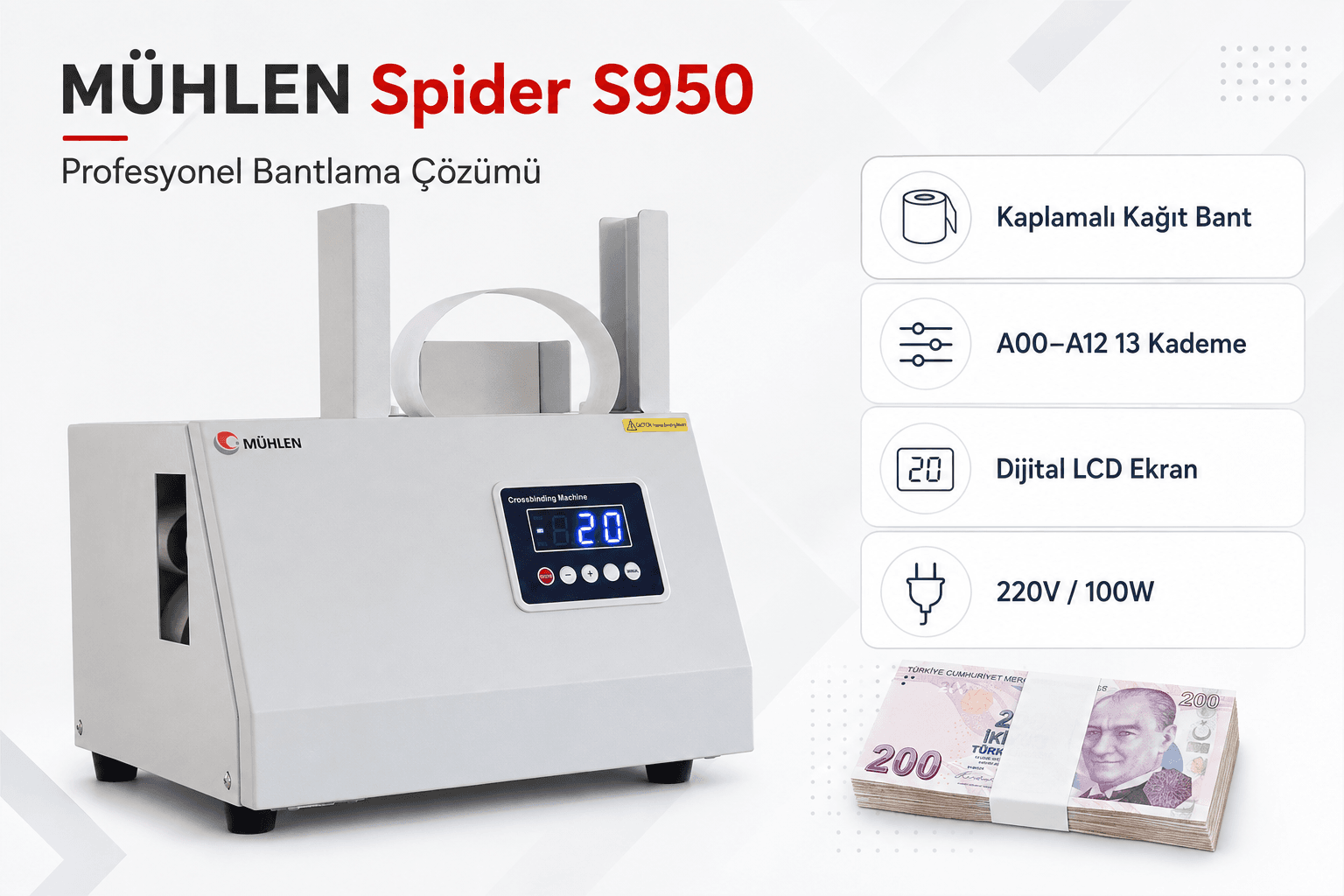

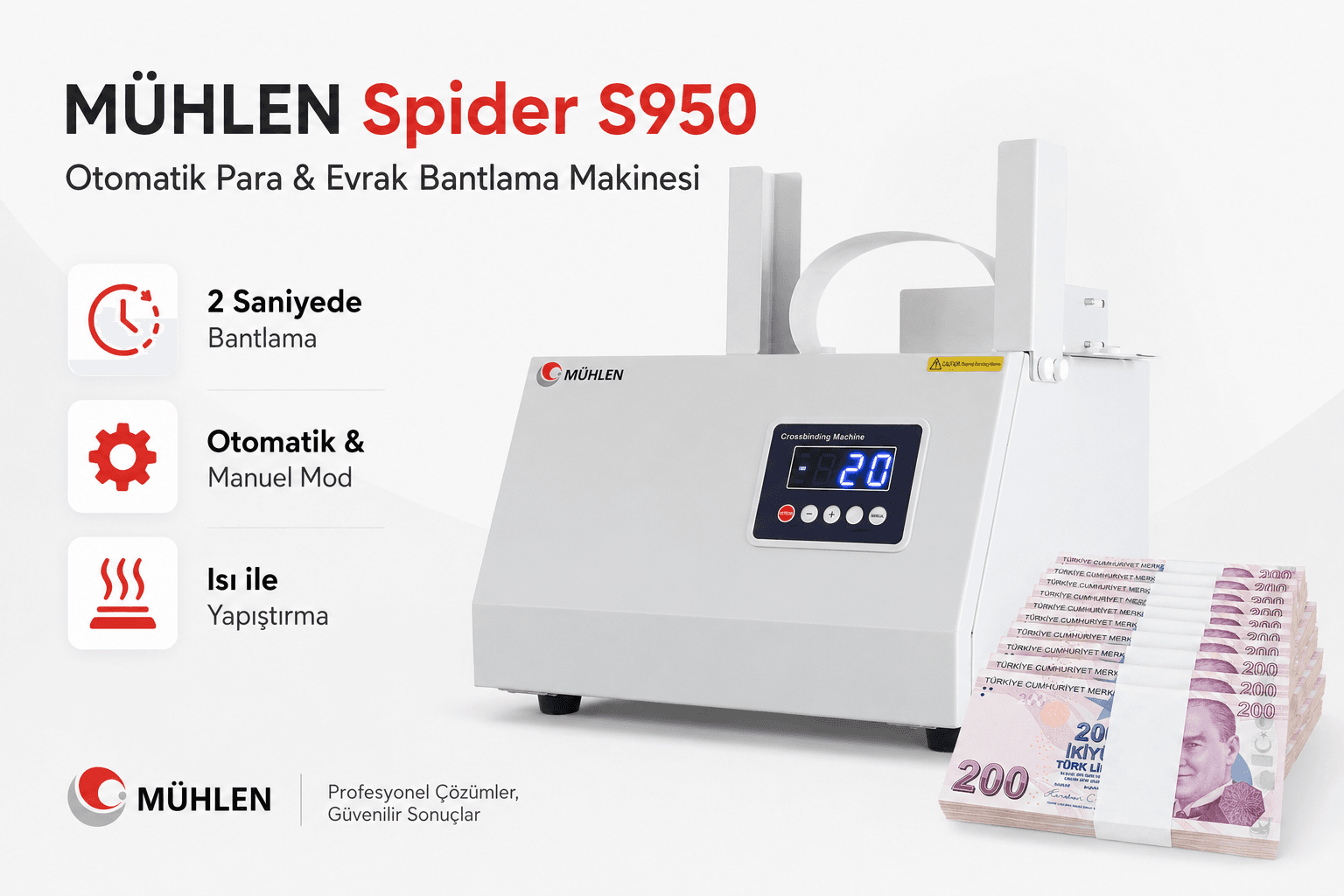

Mühlen Spider S950
Fully Automatic Money Banding and Strapping Machine
Professional Money Banding Solution

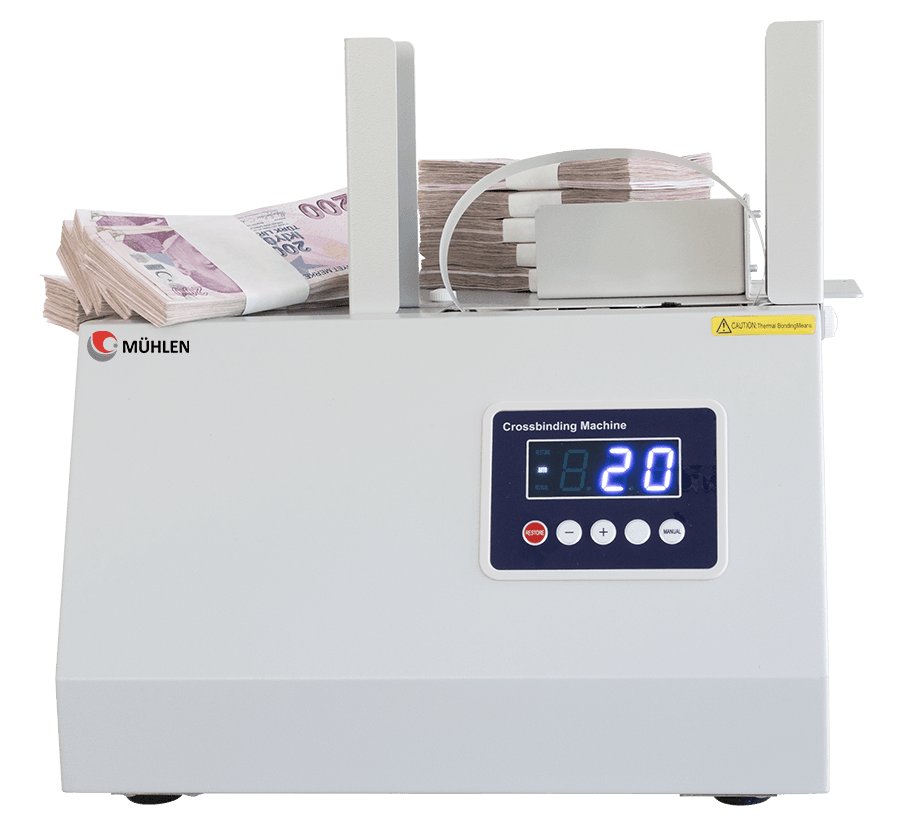

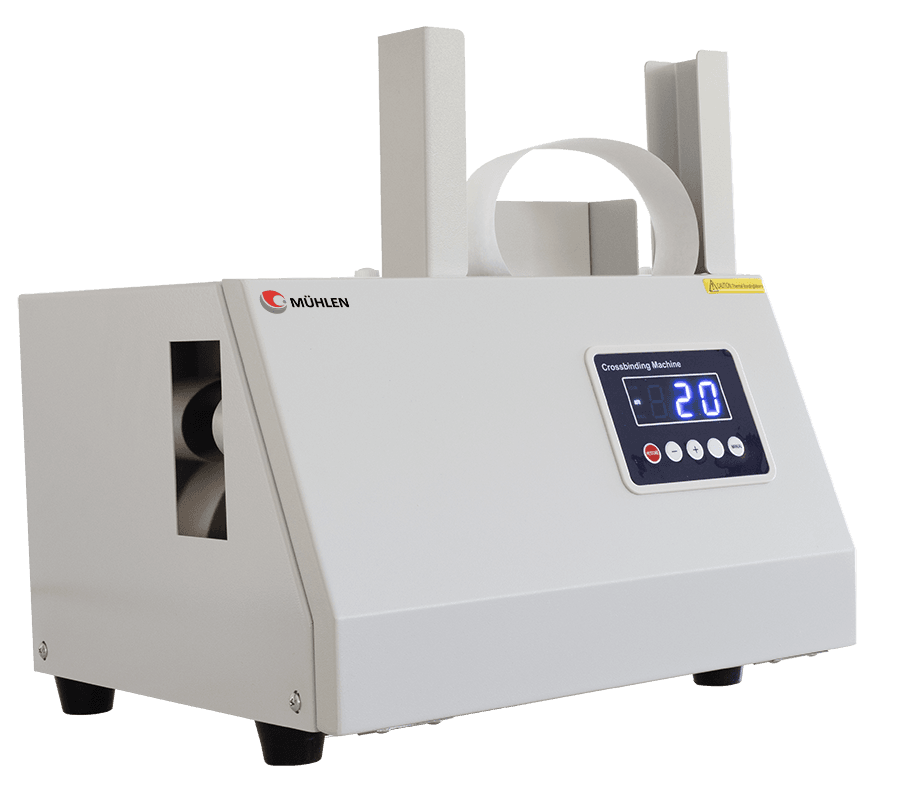

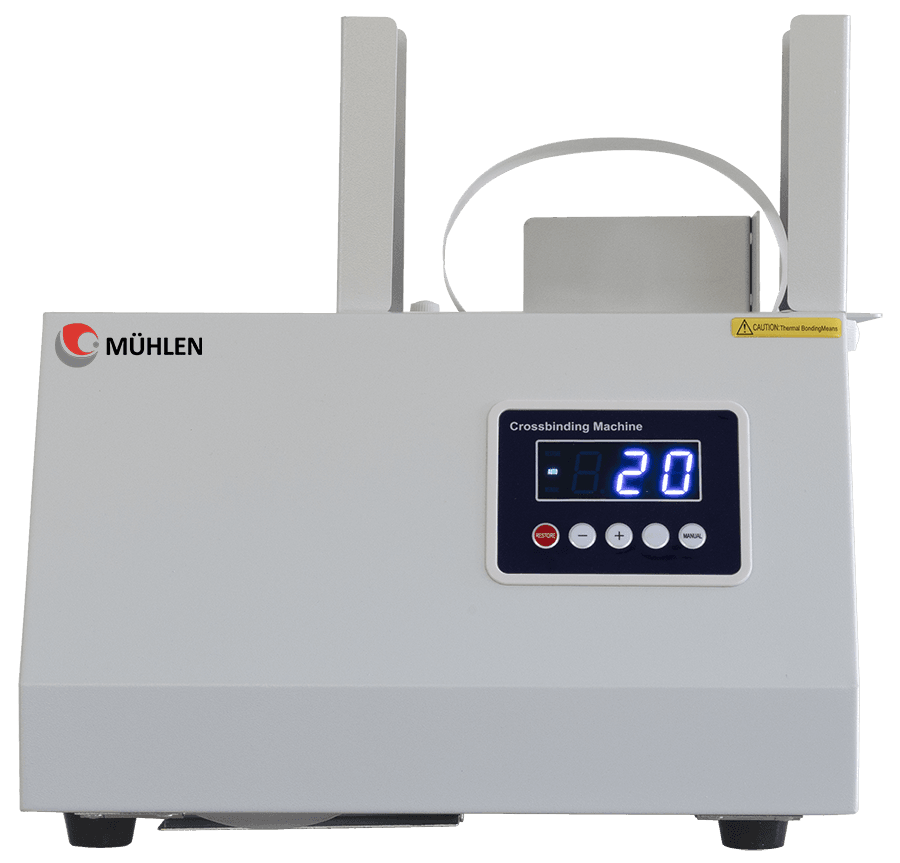

The MÜHLEN Spider S950 was developed to package banknote bundles and printed documents neatly and securely in banks, exchange offices, financial institutions and businesses with heavy cash traffic.
Banding in About 2 Seconds
It bands and heat-seals each bundle in roughly two seconds, ready for use. This reduces the time lost to manual packaging and supports an orderly workflow at busy teller counters.
Automatic and Manual Operation
In AUTO mode the detection sensor recognises the bundle and starts banding automatically. In MANUAL mode the operator can trigger the banding cycle whenever required.
Strong Heat Sealing
The coated paper band is fed, cut and heat-pressed automatically so that it bonds firmly. The result is a tidy, tight and professional-looking bundle.
13-Step Band Length
Band feed length is adjustable across 13 steps from A00 to A12. Wrapping tightness can also be changed according to bundle thickness and use.
Digital Display and Counter
A 3-digit digital display shows the total number of bundles banded. The SET, +, –, AUTO and MANUAL keys make all functions easy to control.
Durable and Economical Design
With its solid mechanical and modular body, the Spider S950 runs on a 220V supply. It draws about 100W in operation and only 10W on standby.
Technical Specifications
- Designed for heavy-duty, intensive use
- Automatic band feed for simple operation
- Adjustable bundle positioning guides
- Bands banknotes, paperwork and documents
- Automatic and manual banding modes
- Manually adjustable wrapping tightness
- Heat pressing, sealing and bonding
- Adjustable automatic start sensor
- Up to 20 bundles banded in one run
- Heat level adjustable from P0 to P9
- Sealing time between 2 and 5 seconds
- 13-step band setting from A00 to A12
- Cross, double-cross and free banding
- Automatic band winding and cutting
- Automatic band strip detection sensor
- Modular, durable mechanical body
- Total banding counter on the LCD display
- 40 mm wide, 100 metre band
- Heat-insulated PE paper band
- Power rating: 220V AC / 100 Watt
- 24-month manufacturer and service warranty
Advantages
- Fully automatic banding for intensive use
- All settings managed from the LCD display
- SET, +, –, AUTO and MANUAL control keys
- Picks up the band and sets it ready automatically
- Band tightness, heat and strap diameter adjustment
Physical Properties
- Product dimensions: 370W × 315D × 380H mm
- Carton dimensions: 400W × 335D × 400H mm
- Net weight: 18.5 kg
- Gross weight: 20 kg
Mühlen Spider S950 — Heavy-Duty Money Strapping Machine with 40 mm Paper Band
Who Is It For?
The Mühlen Spider S950 is a money strapping machine for institutions that must band large numbers of banknote bundles or printed documents quickly and to a consistent standard. Its detection sensor recognises a bundle and starts banding on its own, and its modular body is designed for heavy-duty use, which suits bank branches, exchange offices, cash counting centres, financial institutions and busy teller counters. As it also bands paperwork, archive and accounting departments can use it for document bundles.
Key Features and What They Do
- Banding in about two seconds: Each bundle is wrapped and heat-sealed in roughly two seconds, reducing time lost to manual packaging.
- Strong heat sealing: The coated paper band is fed, cut and heat-pressed automatically for a tidy, tight bundle.
- Heat and sealing control: Heat level from P0 to P9 and sealing time between 2 and 5 seconds adapt to different bundles.
- 13-step band length: Feed length is set from A00 to A12, and wrapping tightness is adjusted manually.
- Banding patterns: Cross, double-cross and free banding, with up to 20 bundles banded in one run.
- Simple controls: SET, +, –, AUTO and MANUAL keys and a 3-digit display showing total bundles banded.
Frequently Asked Questions
What band does the Spider S950 use?
A heat-insulated PE paper band, 40 mm wide and 100 metres long.
Can banding be started manually?
Yes. In MANUAL mode the operator triggers each cycle; in AUTO mode the sensor starts it.
How much power does it draw?
It runs on 220V AC, drawing about 100W in operation and only 10W on standby.
What warranty is included?
The machine has a 24-month manufacturer and service warranty.
Usage and Care Tips
Fine-tune the heat level and sealing time on a test bundle before switching to a new thickness. When fitting a new 40 mm band, check its direction; the band strip detection sensor then sets it ready automatically. Install the 370×315×380 mm, 18.5 kg unit on a sturdy, level counter, and clean the sealing zone and band path of dust and adhesive regularly.
