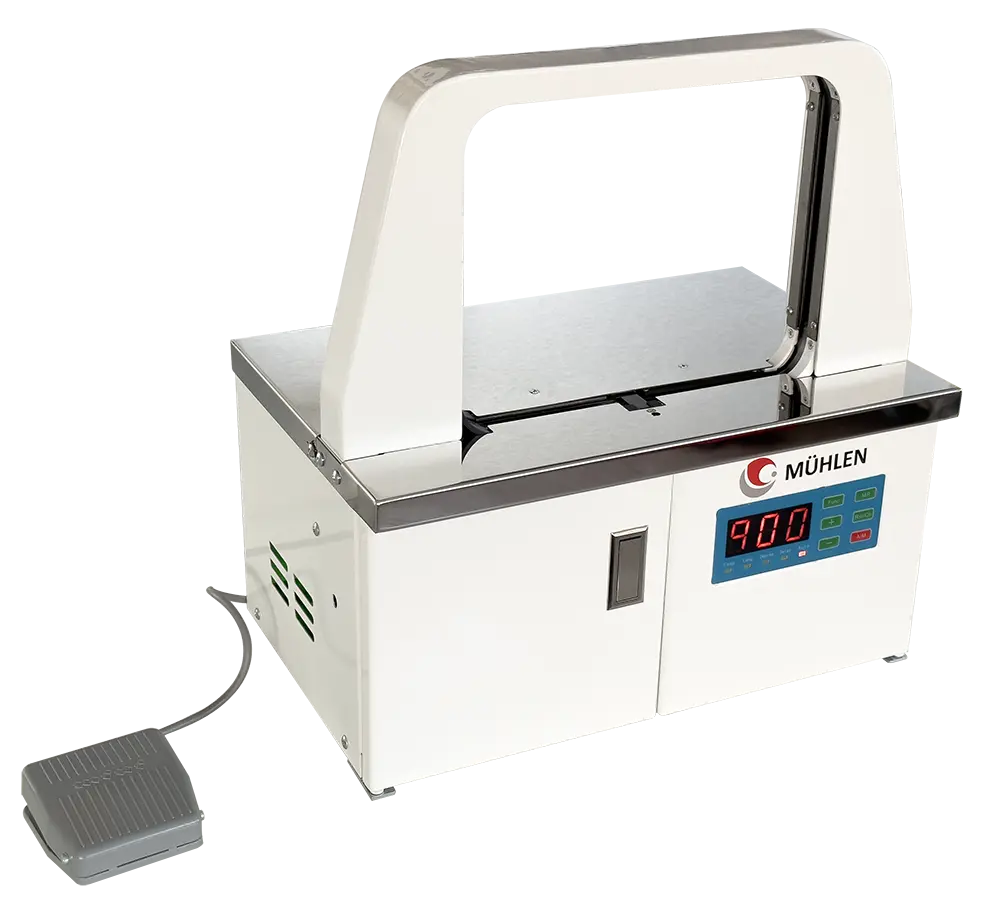

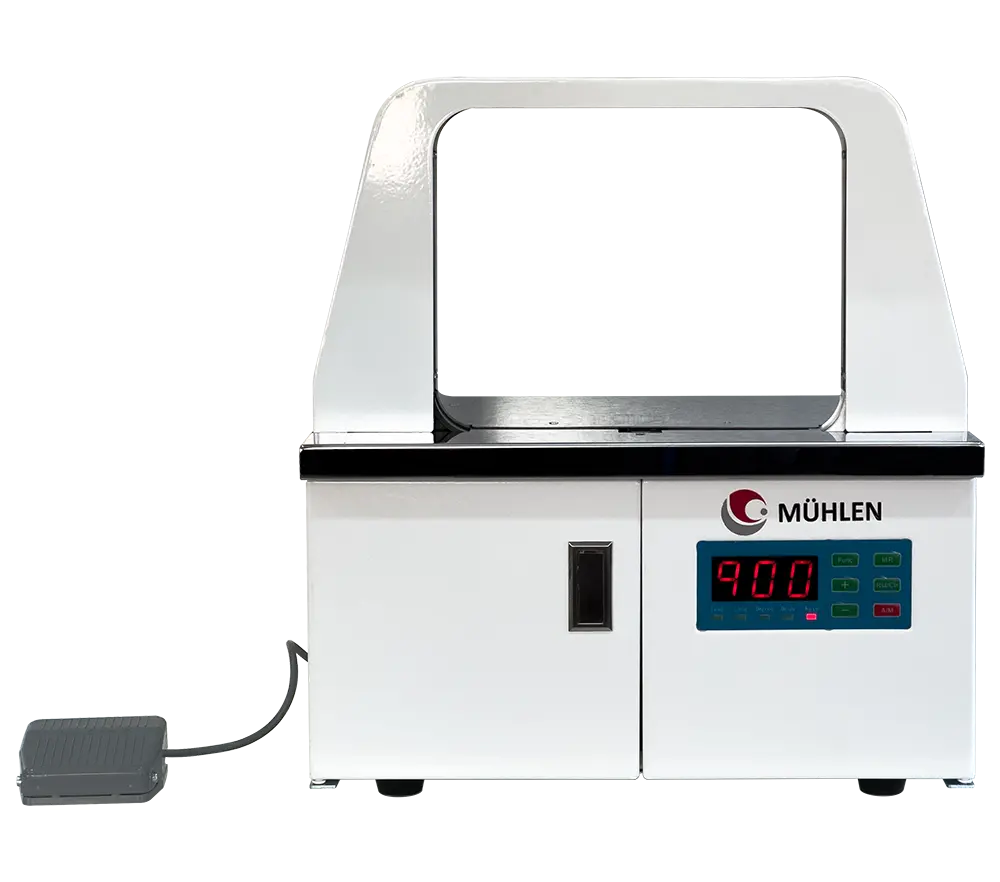

Mühlen Spider S-300
Automatic Money Strapping Machine
Automatic and Manual Strapping
The MÜHLEN Spider S-300 can quickly and easily strap money or other objects with plastic strip, either automatically or manually using its built-in pedal.
12mm OPP Film
Using 12mm-wide OPP film, this model can automatically strap and seal money or various objects within seconds, according to the user's preference.
Straps a Wide Range of Items
The MÜHLEN Spider S-300 can securely strap and seal not only money but also other objects and items of different thicknesses.
Functional Features

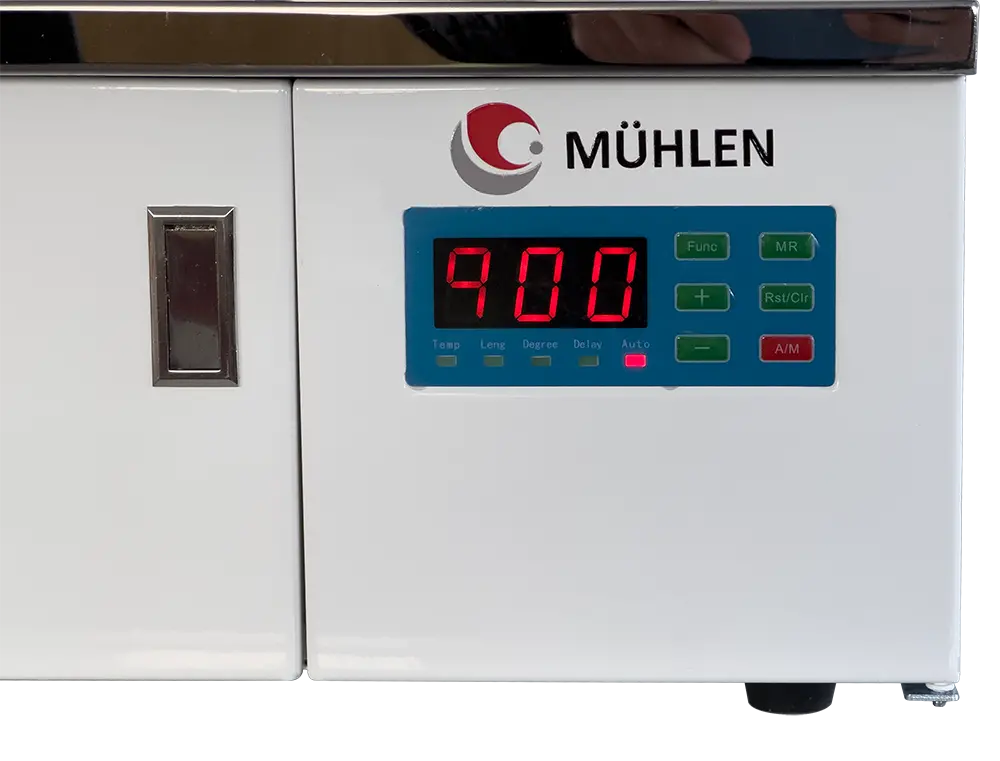

The control panel of this model allows you to easily adjust bundle tightness, strap length, sealing heat, thickness settings, delay time, and automatic or manual operating mode.
Automatic and Manual Strapping
The MÜHLEN Spider S-300 allows strapping to be performed either automatically with sensor support or manually using its built-in foot pedal.
Easily Replaceable Film Strip
As shown in the instructional video, simply pressing the MR button pulls the film into the machine and prepares it for strapping.
Suitable for Heavy-Duty Use
The model is designed to run smoothly even under intensive use, and it meets a safety standard that will not harm the human body under any condition.
Technical Specifications
- Comes with 1 roll of 12mm-wide OPP film strip
- Banding and strapping for money and various objects
- High safety standards, protection against injury risk
- Easy insertion of a new strip and quick preparation for use
- Automatic delay, strap length and thickness adjustments
- 3-digit LED display showing settings and bundle count
- Capacity to strap 10×100 banknotes at a time
- Adjustable bundle tightness and sealing heat settings
- Adjustable bundle stopper to ensure symmetry
- Strapping material: 12mm PPO, diameter: ø16cm
- Fully automatic banding and strapping machine
- Maximum strapping size: 230×180 mm
- Minimum strapping size: 30×10 mm
- Automatic or manual operating feature
- Instant start for the banding process
- Fast strapping process in 2-3 seconds
- Adjustable clamping force: 5~50N
- Strap breaking strength: ≥95%
- (Strap breaking force: 50 kg)
- Power supply: 220V AC, 50Hz
- Power consumption during operation: 300W
- Standby power consumption: 10W
- 24-month warranty period
Advantages
- Fully automatic money and item strapping/banding machine
- Maximum strapping size: 230×180 mm
- Minimum strapping size: 30×10 mm
- Strapping speed: 2-3 seconds
- Strap breaking strength: ≥95%
- Strap breaking force: (50 kg)
Physical Properties
- Dimensions: 370(L)*241(W)*403(H)mm
- Box Dimensions: 450×320×460 cm
- Net Weight: 13 kg
- Gross Weight: 16 kg
Mühlen Spider S-300 — Automatic Money Strapping Machine with Foot Pedal
Who Is It For?
The Mühlen Spider S-300 is a fully automatic money strapping machine for businesses that need to secure many banknote bundles or small packages quickly and uniformly. Bank branches, cash counting centres, cash-intensive retail points, supermarkets and accounting departments use it to keep bundles tight and the same size. Because it straps items from 30×10 mm up to 230×180 mm, it is not limited to money and also handles various small objects of different thicknesses.
Key Features and What They Do
- Sensor or pedal operation: In automatic mode a sensor detects the bundle and starts strapping; in manual mode the operator uses the built-in foot pedal.
- 2-3 second cycle: Strapping starts instantly and each bundle is sealed in 2-3 seconds.
- Control panel settings: Bundle tightness, strap length, sealing heat, thickness and delay time are adjustable, with a clamping force of 5~50N.
- 3-digit LED display: Shows the current settings and the number of bundles processed.
- Quick film loading: Pressing the MR button draws the 12mm film into the machine and prepares it for strapping; one roll is supplied.
- Capacity: Straps 10×100 banknotes at a time, with an adjustable stopper that keeps bundles symmetrical.
Frequently Asked Questions
What size items can the S-300 strap?
From a minimum of 30×10 mm up to a maximum of 230×180 mm.
How long does one strapping cycle take?
The process is completed in 2-3 seconds.
What are the power requirements?
220V AC, 50Hz; it uses 300W during operation and 10W on standby.
Is it built for daily heavy use?
Yes. It is designed to run smoothly under intensive use and includes protection against injury risk.
What is the warranty period?
The Spider S-300 has a 24-month warranty.
Usage and Care Tips
Before working with a new bundle thickness, set the clamping force and sealing heat on a test bundle so the strap is neither loose nor tight enough to crush the notes. When the film runs out, load a new roll with the MR button and check its direction. Place the 13 kg machine on a stable, level counter, unplug it during long breaks and clean the sealing area and film path of dust and adhesive residue.
