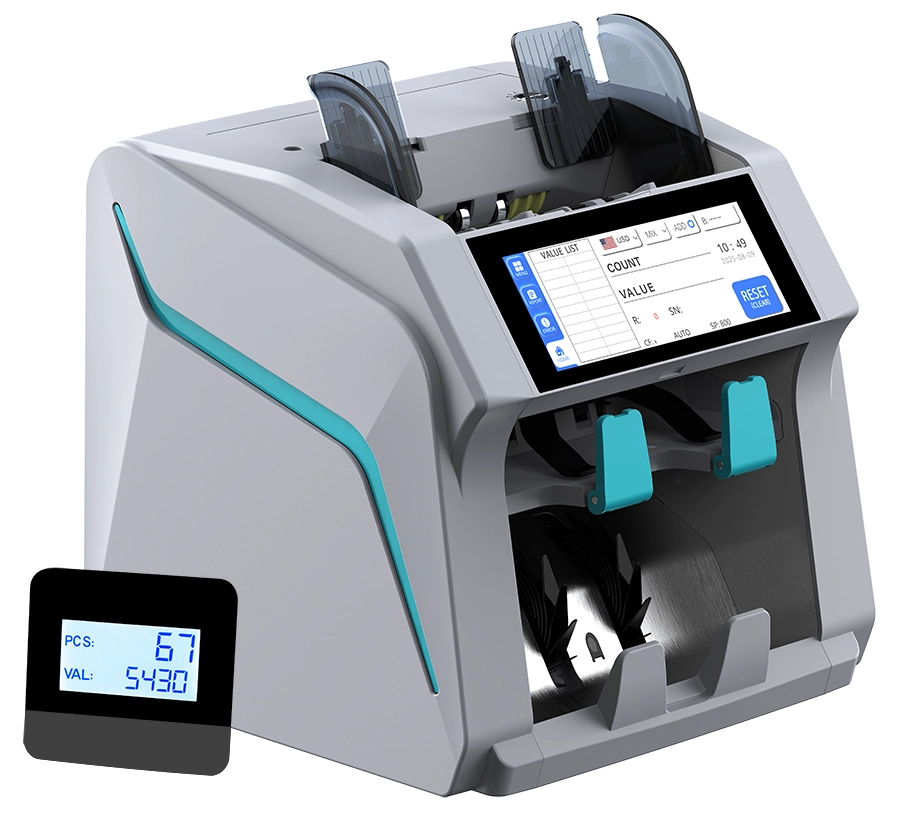

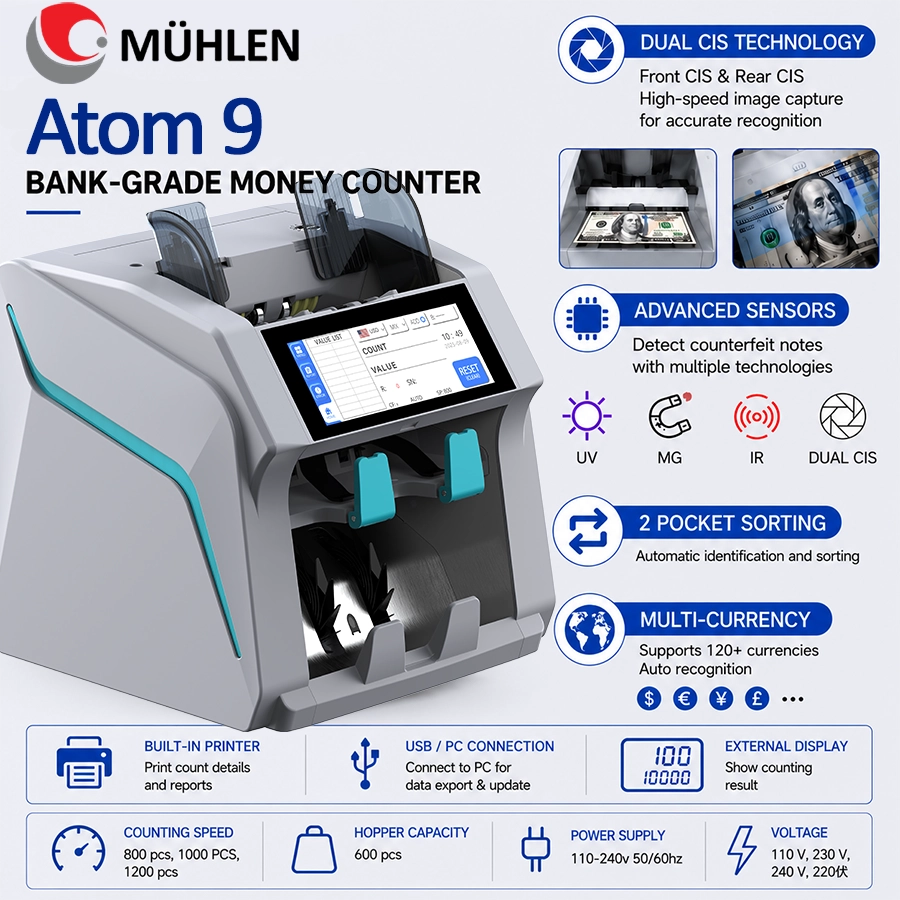

Mühlen Atom 9
Two-Pocket Money Counter with Built-in Printer and Touchscreen
Uninterrupted Counting with Two Pockets
The two-pocket output system moves counterfeit, worn or odd-denomination notes to the RET pocket at the top. The machine keeps collecting the remaining notes in the main pocket without stopping the count.
Multiple Currencies in One Bundle
Alongside automatic currency recognition, Multi-Currency mode counts TRY, USD, EUR and GBP notes in the same bundle with no need to sort them first, and lists the piece count and total value of each currency separately.
Advanced Counterfeit Detection
In addition to Dual CIS technology it is equipped with UV, MG, MT, IR, MTL, 3D, LASER and DD detection systems. Notes are examined from many different points so suspect bills are identified with high accuracy.
Recognises 30 Currencies
Fitted with a 6.85-inch TFT touchscreen, the Atom 9 recognises TRY, USD, EUR, GBP, RUB, SAR, SYP, QAR, LYD, AED, EGP, IQD, IRR, KWD, BHD, LKR, LBP, BGN, BAM, GEL, AZN, KGS, UZS, KZT, CAD, CNY, SEK, NOK, CHF and DKK banknotes.
Dual CIS Imaging Technology
The twin CIS system scans both faces of a note in detail at the same time. It analyses denomination, orientation, face, image and serial number to support fast and reliable counting.
Built-in Thermal Printer
The integrated thermal printer puts counting results, denomination breakdowns, total value and banknote serial numbers on paper, so transactions can be documented and kept on record.
USB and TF Card Updates
The machine software can be updated easily with a USB stick or a TF memory card, allowing new banknotes and newly identified counterfeit characteristics to be added to the device.
Technical Specifications
- Counts and sorts 30 different currencies
- Shows count, detail and serial number
- Separates suspect notes without stopping
- Manual adjustment from the touchscreen
- Automatic or manual count start
- Updates via USB stick or TF card
- Automatic currency recognition
- Counterfeit detection in all currencies
- Sorts notes by orientation and face

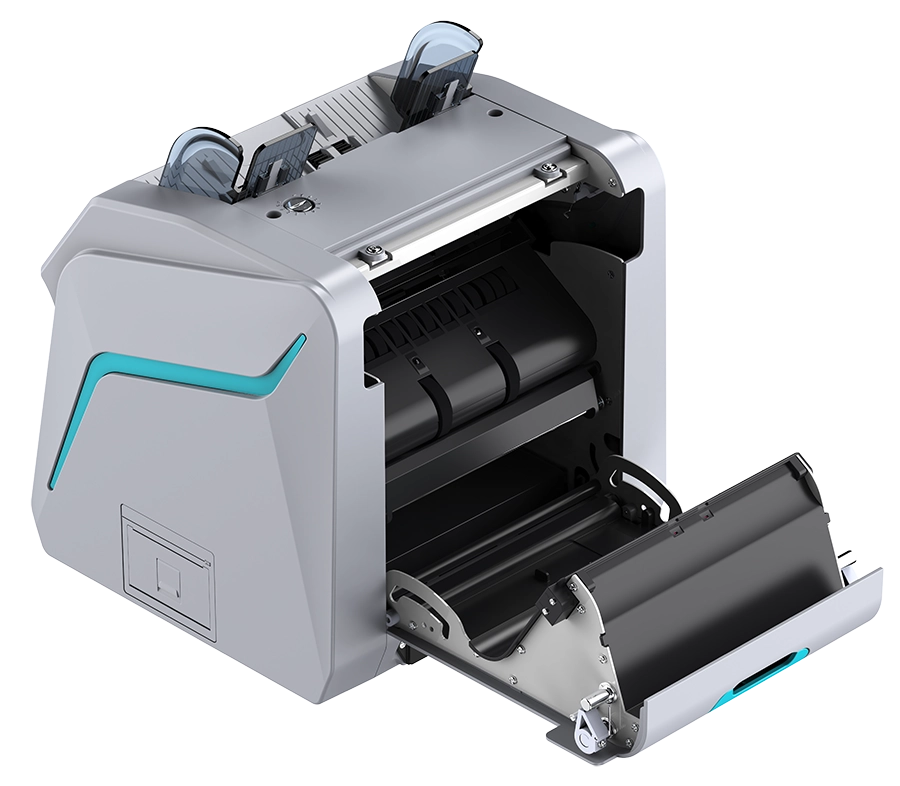

- Hinged rear cover for easy maintenance
- Advanced 81-point note inspection
- Multi-currency counting of TRY, USD, EUR and GBP
- Speeds of 800, 1,000 and 1,200 notes per minute
- Mixed, fixed batch and add functions
- Prepares cash up to the entered amount
- Prepares batches up to the entered count
- Anti-Jam jam prevention system
- Dual CIS, IR and 3D denomination recognition
- 600-note feed hopper

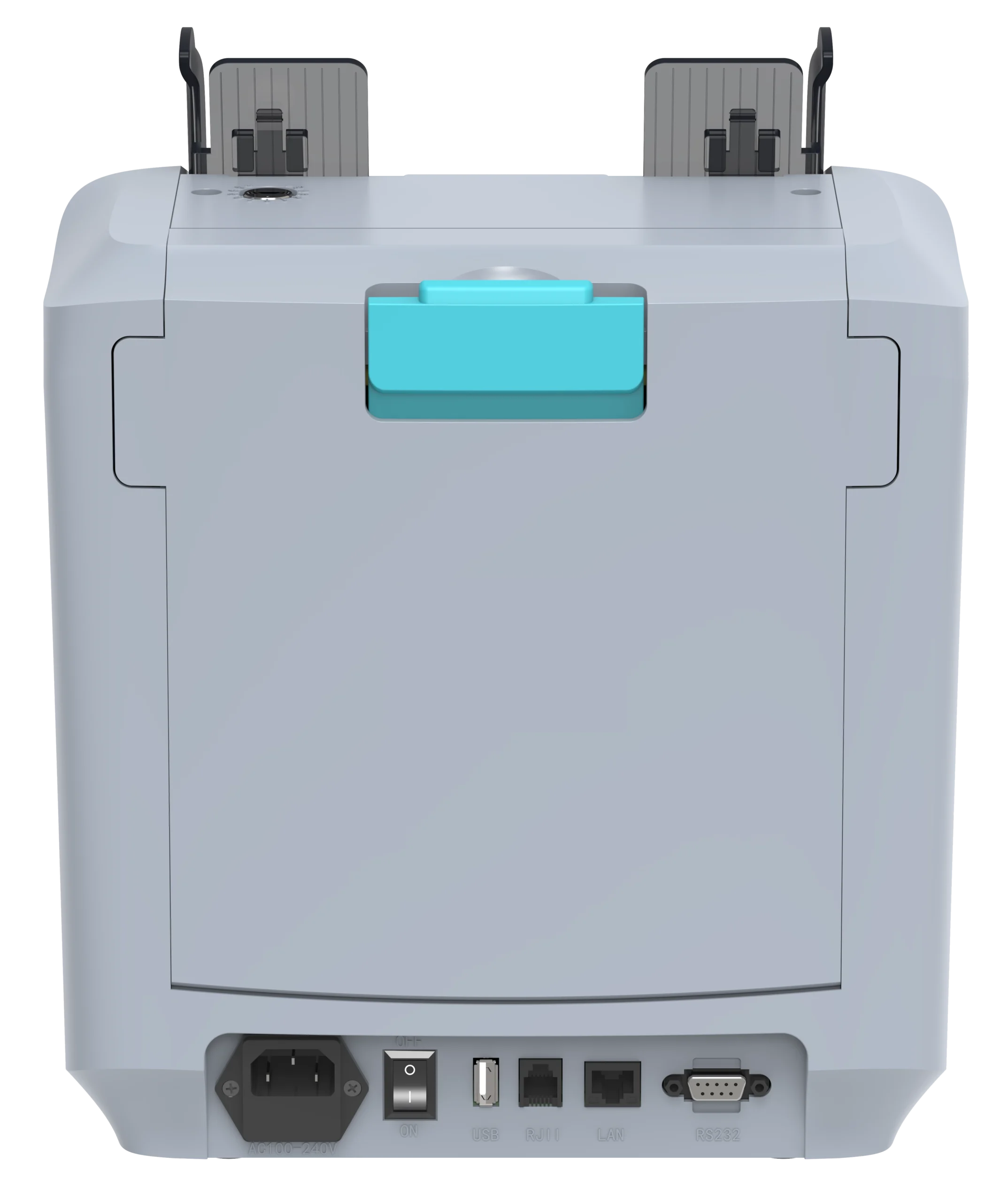

- USB, RJ11 and RS232 connections
- Moves suspect notes to the RET pocket
- Strong and durable mechanical build

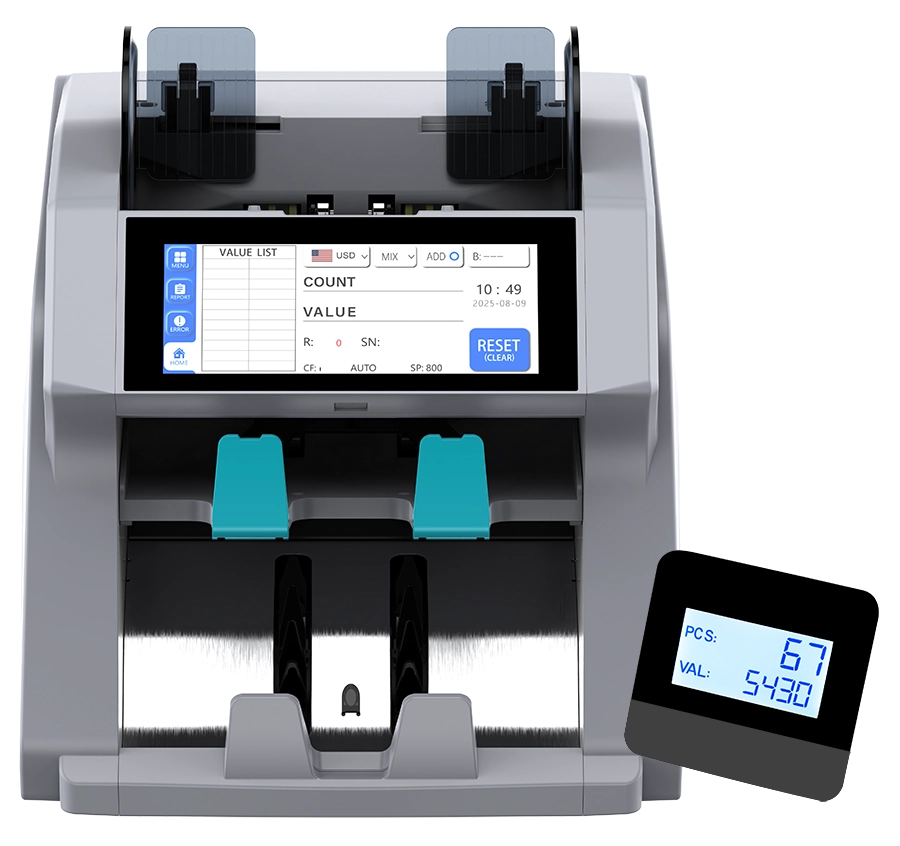

- Large external LED customer display

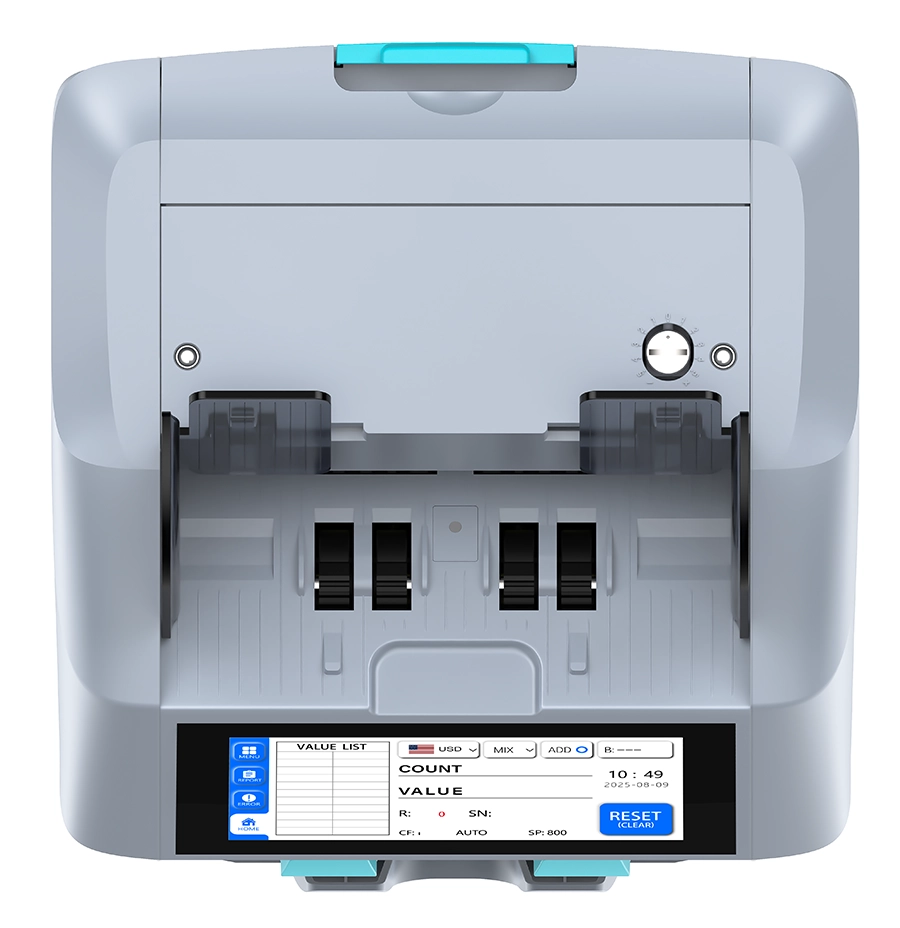

- 6.85-inch TFT touchscreen
- Mixed, single-denomination and piece counting
- 150-note RET capacity
- Count and serial number printout
- 250-note stacker capacity

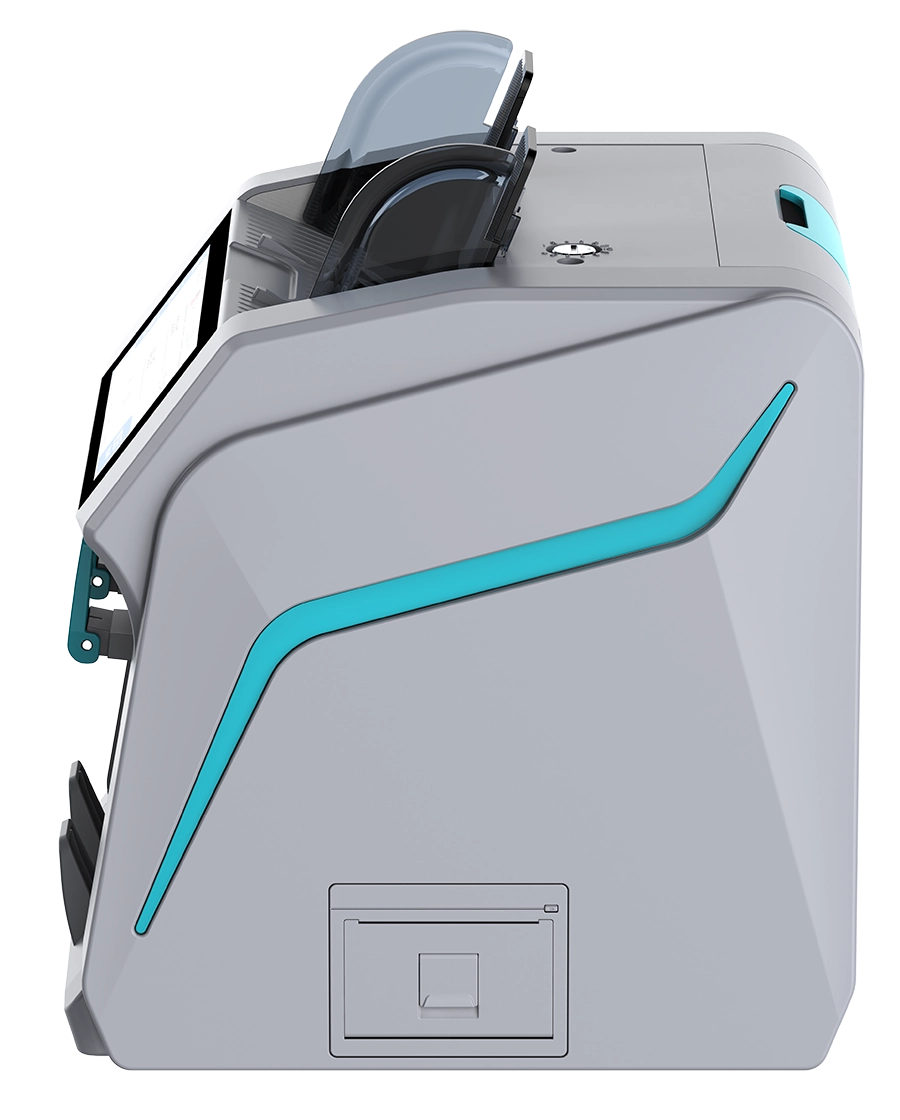

- Built-in thermal printer
- Audible and on-screen warnings
- Removable RET pocket
- 24-month warranty
Advantages
- Two-pocket counting and sorting without interruption
- Recognises 30 different currencies
- Automatic recognition and multi-currency counting
- Reporting with the built-in thermal printer
- Serial number reading with Dual CIS
- 6.85-inch full touchscreen
Physical Properties
- Machine dimensions: 271×279×318 mm
- Carton dimensions: 410×390×410 mm
- Net weight: 8.8 kg
- Gross weight: 12.5 kg
Mühlen Atom 9 — Two-Pocket Money Counter with Built-in Printer
Who Is It For?
The Mühlen Atom 9 is a two-pocket money counter for organisations that process large volumes of cash in several currencies. It moves suspect, worn or odd-denomination notes to the RET pocket without stopping the count, prints results on its own thermal printer and reads serial numbers, which suits bank branches, exchange offices, cash centres, hotels and high-turnover retailers. Multi-Currency mode counts TRY, USD, EUR and GBP in the same bundle, so notes need no pre-sorting.
Key Features and What They Do
- Uninterrupted two-pocket counting: Rejected notes go to the removable 150-note RET pocket while the rest stack in the 250-note main pocket.
- Dual CIS imaging: Both faces are scanned at once to analyse denomination, orientation, face, image and serial number.
- 81-point inspection: UV, MG, MT, IR, MTL, 3D, LASER and DD systems work alongside Dual CIS in all supported currencies.
- 30 currencies: Automatic recognition of 30 currencies, including TRY, USD, EUR, GBP, CHF, CAD and CNY.
- Thermal printer and memory: Results, denomination breakdowns, totals and serial numbers are printed, and the last 2,500 count reports are stored.
- Touchscreen control: A 6.85-inch TFT touchscreen for all settings and a large external LED customer display.
Frequently Asked Questions
Does the count stop when a suspect note is found?
No. The note is moved to the RET pocket and counting carries on.
Which speeds can be selected?
800, 1,000 or 1,200 notes per minute, with a 600-note feed hopper.
Can it prepare a set amount or number of notes?
Yes. It prepares cash up to an entered amount or batches up to an entered count.
How is the software updated?
New banknotes and counterfeit features are added via a USB stick or TF card. USB, RJ11 and RS232 ports are fitted.
What warranty is provided?
The Atom 9 comes with a 24-month warranty.
Usage and Care Tips
For mixed currencies, make sure Multi-Currency mode is on; otherwise other currencies are sent to the RET pocket. With soft, heavily used bundles, choose a lower speed to ease the load on the Anti-Jam system. Empty the RET pocket when full and clean the CIS windows through the hinged rear cover. Place the 8.8 kg machine on a firm, level counter.
