MÜHLEN Falcon F24
High-Speed Vacuum Money Counting Machine
For True Professionals
The MÜHLEN Falcon F24 is a time-saving money counting machine suited for professional use, thanks to its counting speed of up to 2400 notes per minute and practical usage features.
Controlled Counting Modes
Check Mode: If the count does not reach or exceeds 100 notes, the machine gives a warning and does not release the money. Pressing the RESET button releases the money. This feature helps users increase counting accuracy and minimize errors.
UV MODE
Thanks to its UV mode, the Falcon F24 detects basic counterfeit banknotes and stops counting to alert the user. This function allows counterfeit banknotes to be identified quickly and efficiently.
FREE MODE
In FREE mode, the machine can count money without a counting limit and always releases the money after counting. This function offers users an uninterrupted and comfortable counting process.
BATCH MODE
The MÜHLEN Falcon F24 can batch a desired number of notes using the numeric keys in BATCH mode and notifies the user when the batch is complete. This function makes it easier for users to group money accurately and quickly.
ADD MODE
With its four-digit counting display, the device can count up to a total of 100,000 notes consecutively thanks to the add feature. This feature allows users to process large amounts of money practically and quickly.
ADJUSTABLE SPEED
With adjustable speed options, the MÜHLEN Falcon F24 can operate at 2.5s/100 (2400 notes/minute), 3s/100 (2000 notes/minute), 3.5s/100 (1700 notes/minute) and 4s/100 (1500 notes/minute). This function adapts to different speed requirements to deliver the most suitable performance.
Technical Specifications
- High-speed vacuum money counting machine (max. 2400/minute)
- Adjustable speed options: 2400, 2000, 1700, 1500 notes/minute
- Smart holder that safely holds and releases the money
- Free counting mode (money is always released)
- Controlled counting mode (error warning and money lock)
- Total counting capacity of 100,000 notes with the add feature
- 360-degree rotating customer display (4 digits)
- Counterfeit detection and warning with UV technology
- Self-test and error detection feature
- Green, 4-digit batch display
- Automatic start and stop function
- 100-note counting check with Check mode
- Unlimited counting feature in Free mode
- Large 5-digit green LED display
- Max. note size: 130mm x 240mm
- Min. note size: 45mm x 100mm
- Money hopper capacity: max. 220 notes
- Batch range: 1~999
- 2-year warranty period
Advantages
- Super-fast finger-feed/VACUUM money counting machine
- Counting speeds: 2400, 2000, 1700, 1500 notes/minute
- Controlled counting (warns and does not release the money)
- Focus on 100 notes with Check mode
- Batching and add features
Physical Properties
- Net weight: 25 kg
- Gross weight: 26 kg
- Box dimensions: 350(H) x 400(W) x 470(D) mm
- Machine dimensions: 280(H) x 325(W) x 400(D) mm
MÜHLEN Falcon F24 — Fast Vacuum Money Counting Machine
Who Is It For?
The MÜHLEN Falcon F24 is a vacuum (finger-feed) money counting machine for operations with heavy cash traffic. With speeds of up to 2400 notes per minute and an add function that totals up to 100,000 notes, it suits large supermarkets, wholesalers, fuel stations, cash-in-transit and counting centres, entertainment venues and retail points with busy closing routines. It is built for a fixed counting desk where notes are processed all day rather than for occasional small counts.
Key Features and What They Do
- Four speed settings: 2.5s/100 (2400 notes/minute), 3s/100 (2000), 3.5s/100 (1700) and 4s/100 (1500), so new notes can run fast and worn ones more gently.
- UV mode: Detects basic counterfeit notes, stops the count and alerts the operator.
- Check mode: If a count falls short of or exceeds 100 notes, the machine warns and holds the money until RESET is pressed.
- Free mode: Counts without a limit and always releases the notes, for uninterrupted work.
- Batch and add: Batches from 1 to 999 are set with the numeric keys, and consecutive counts can be added up to 100,000 notes.

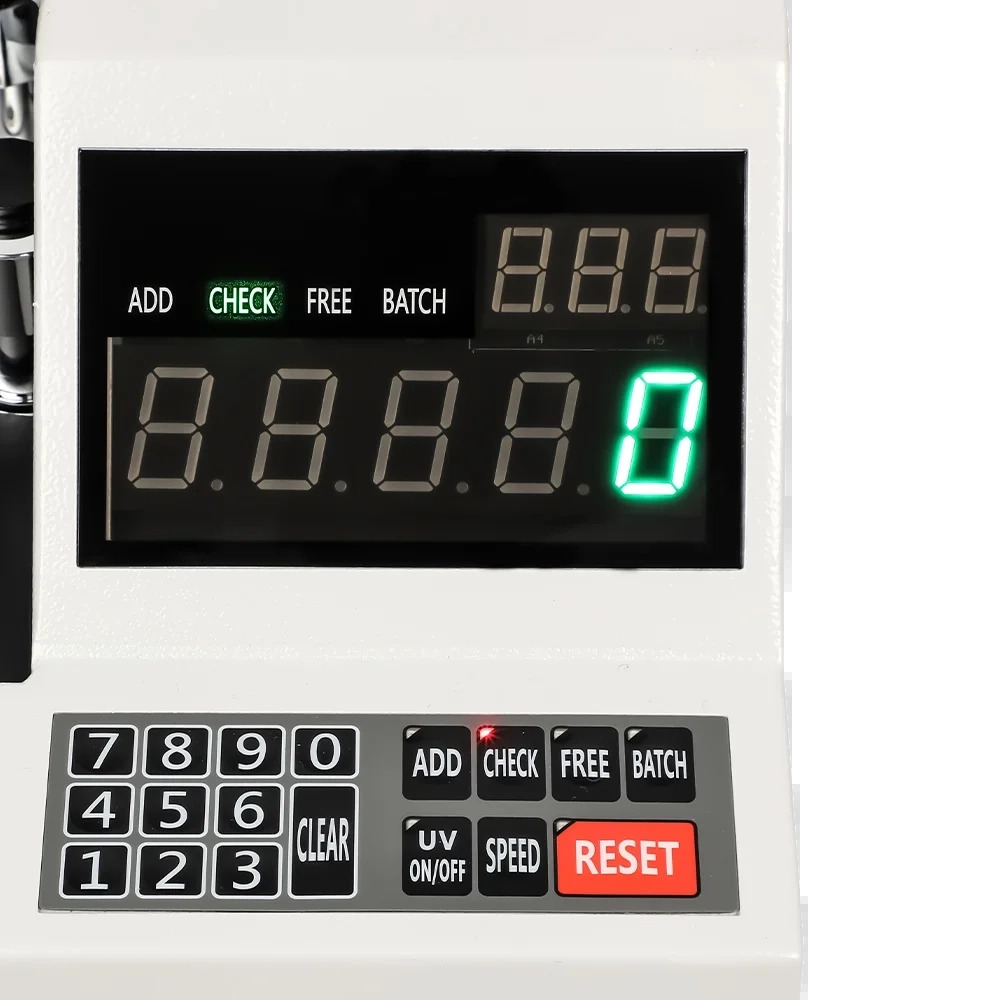

- Displays for both sides: A large 5-digit green LED display for the operator and a 360-degree rotating 4-digit customer display.
Frequently Asked Questions
How does the Falcon F24 detect counterfeit notes?
In UV mode it identifies basic counterfeit banknotes, stops counting and warns the user.
How many notes can be loaded at once?
The money hopper takes a maximum of 220 notes per load.
Which note sizes are supported?
From a minimum of 45mm x 100mm up to a maximum of 130mm x 240mm.
What is the warranty period?
The machine is covered by a 2-year warranty.
Usage and Care Tips
Use the 2400 notes/minute setting for new, flat notes and drop to 1700 or 1500 for worn or damp ones. Clean dust and paper particles from the hopper regularly so the UV and counting sensors stay accurate. Place the machine on a solid, level counter. If the self-test reports an error at start-up, check the hopper and note path before restarting, and reset the batch and add counters before a new count.
