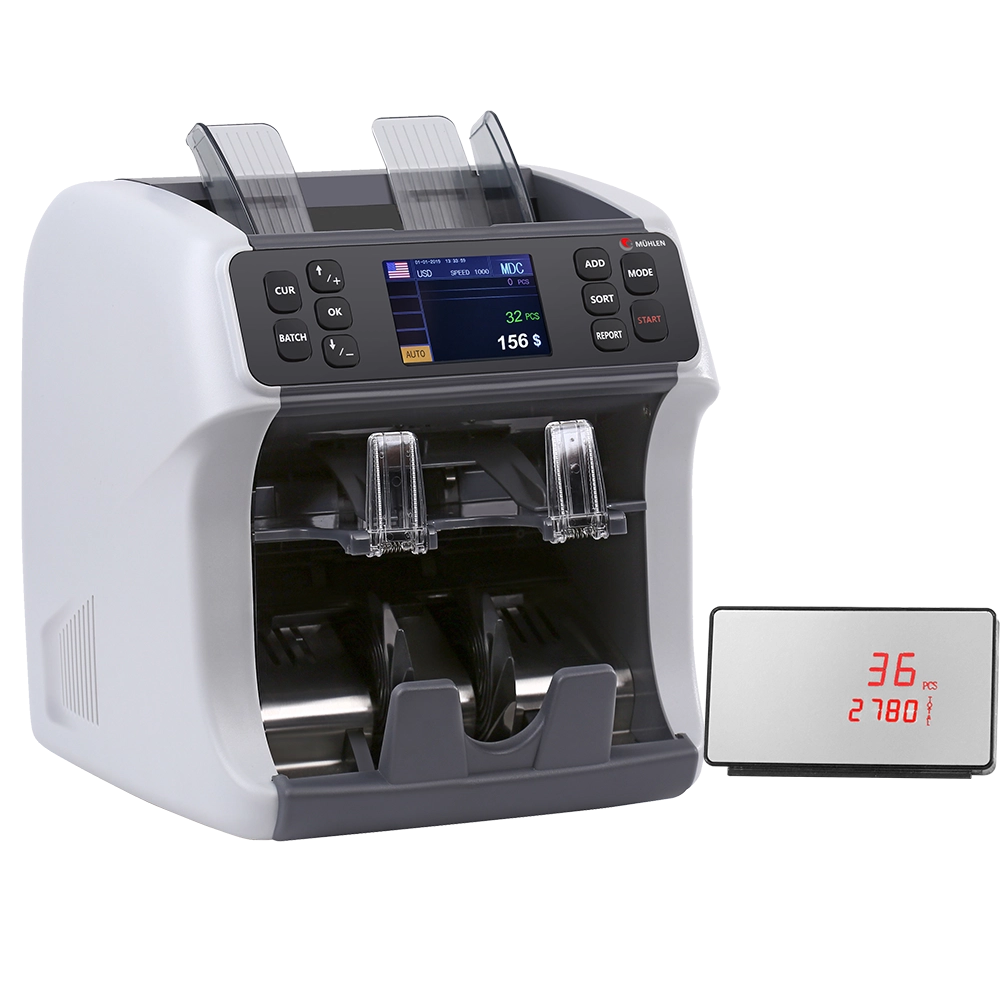

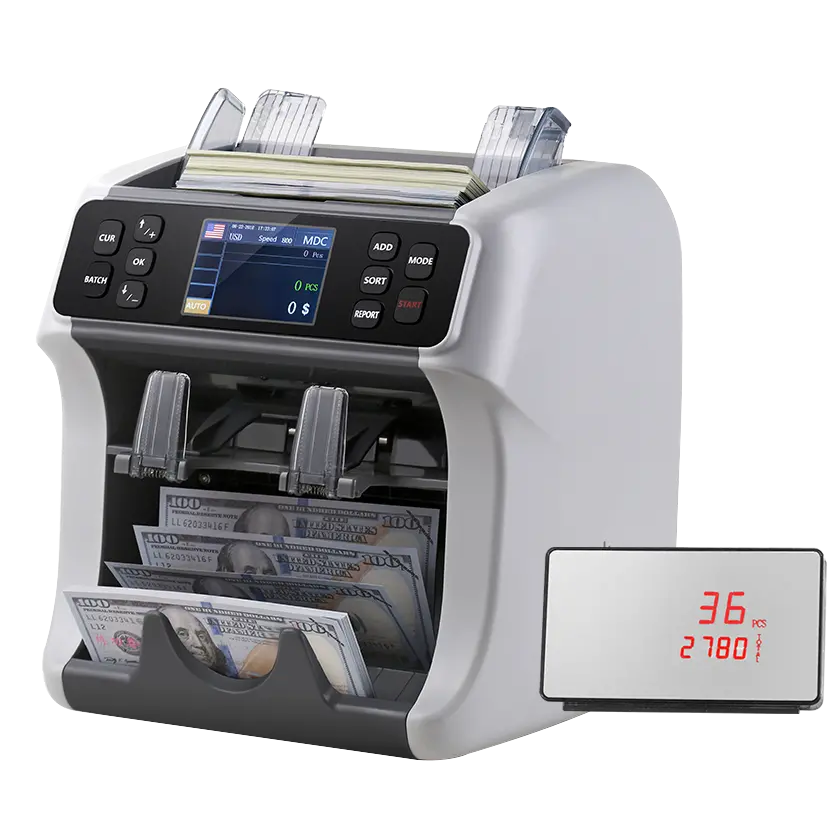

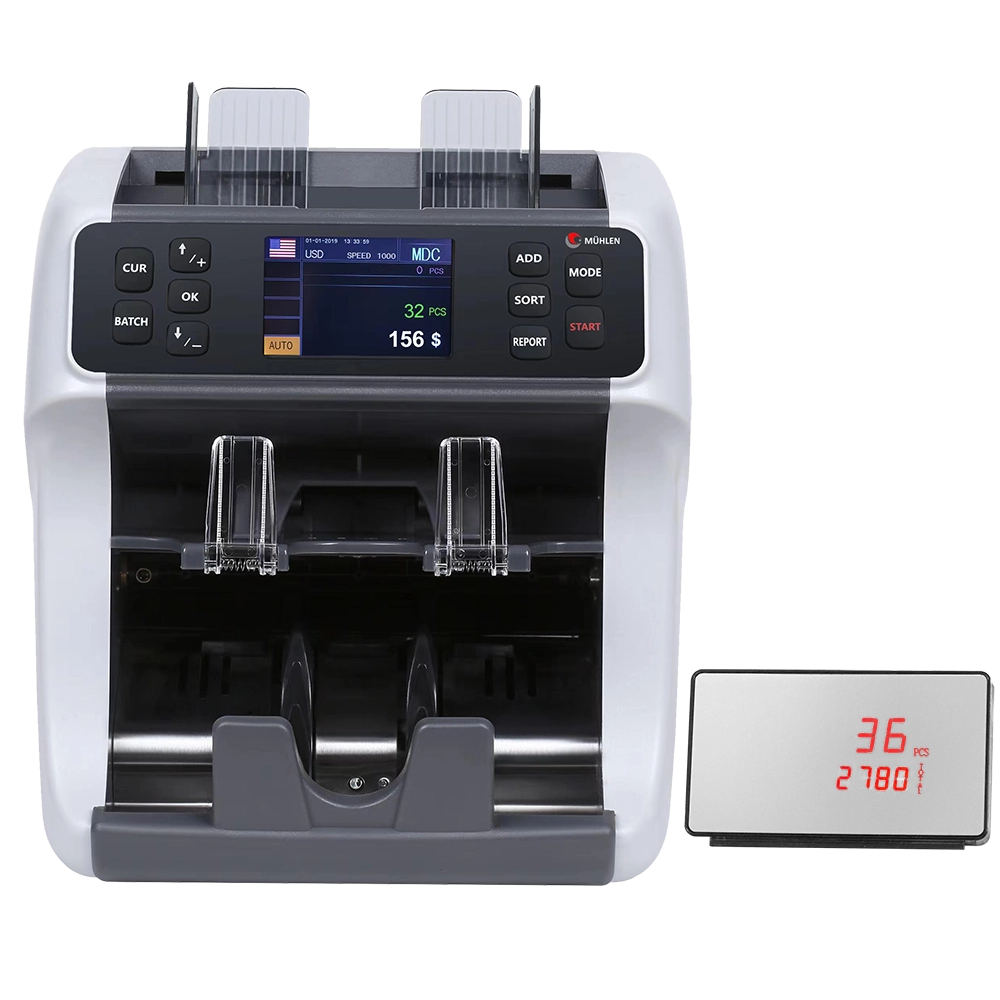

Mühlen Falcon L75
Two-Pocket Mixed Bill Counter
Two-Pocket / Dual CIS
Thanks to its dual CIS system, the machine counts money flawlessly while its 61-point counterfeit detection system (2025 update) detects counterfeit notes at maximum accuracy and diverts suspicious notes to the second pocket.
15 Countries, Fully Automatic
The MÜHLEN Falcon L75 automatically recognizes TRY, USD, EUR, GBP, RUB, SAR, SYP, LBP, IQD, IRR, AZN, QAR, KZT, EGP and JOD, counts them in mixed mode, and captures their serial numbers.
Maximum Counterfeit Detection Rate
The MÜHLEN Falcon L75 uses high-precision sensors to detect counterfeit banknotes at rates of up to 100% (updated for all counterfeit notes: March 2025).
Two-Pocket Counting System
The MÜHLEN Falcon L75 is equipped with a two-pocket counting system. This lets the machine divert suspicious notes to the upper pocket, sort notes by face and orientation, and separate different denominations. These features make the counting process more efficient and reliable.
Automatic Currency Recognition
The MÜHLEN Falcon L75 can count the currencies of 15 different countries and automatically identifies which currency has been inserted without any menu changes. This lets users count money quickly and smoothly.
Serial Number Capture
The MÜHLEN Falcon L75 captures banknote serial numbers in real time during counting. Users can list these serial numbers on screen or print them out. This feature makes it easier to track and verify banknotes.
Batching by Quantity or Value
The MÜHLEN Falcon L75 lets users batch notes either by quantity or by entering a total amount, giving users flexibility and convenience.
Technical Specifications
- Two-pocket design diverts suspicious notes to the upper pocket without stopping the count
- Mixed counting of 15 currencies including TRY, USD, EUR, GBP, RUB and SAR
- Displays and prints the counted amount and details on screen
- Counts 5 different currencies at the same time | Multi-currency counting
- Displays and prints banknote serial numbers on screen
- Dual CIS and 3D technology for denomination recognition
- Batching of a desired amount or quantity via the payment system

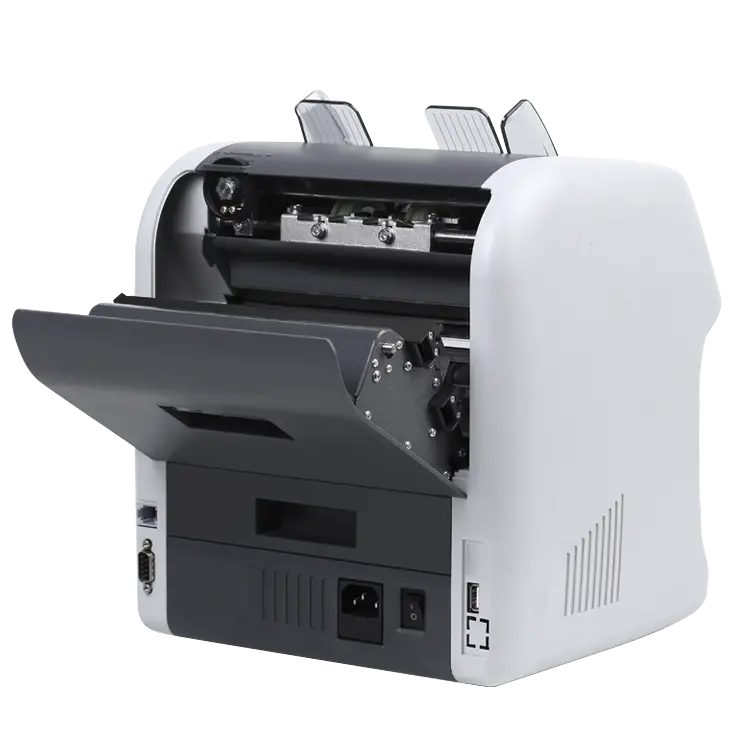

- Easy cleaning thanks to the openable cover and modular design
- RS-232C connection for thermal printer output
- 3-speed counting: 800 - 1000 - 1200 notes/minute
- Combines note orientation and face-up/face-down sorting
- Easy updates: automatic via USB flash drive
- Anti-jamming system for a zero-jam rate
- 3.5" color TFT display plus external customer display
- 100% counterfeit detection rate (61-point inspection)
- Automatic currency recognition and mixed counting
- Counting modes: Mixed, First-Note, Single Denomination
- Automatic currency recognition without changing menus
- Audible and on-screen user alert system
- Automatic and manual counting modes
- Batching and add function
- First-class materials and workmanship
- 4-direction note scanning and recognition
- Feed hopper: 500 notes
- Output stacker: 200 notes
- Reject pocket: 100 notes
- 24-month warranty
Advantages
- Two-pocket design diverts suspicious notes to the upper pocket without stopping the count
- Mixed counting of 15 currencies including TRY, USD, EUR, GBP, RUB and SAR
- Displays and prints the counted amount and details on screen
- Counts 5 different currencies at the same time | Multi-currency counting
- Displays and prints banknote serial numbers on screen
- Dual CIS and 3D technology for denomination recognition
Physical Properties
- Machine dimensions: 320mm (H) x 260mm (D) x 280mm (W)
- Carton dimensions: 375mm (H) x 320mm (D) x 370mm (W)
- Interface: USB, LAN, RJ11, RS-232C
- Power supply: 100-240V AC, 50/60Hz
- Power consumption: 50W maximum
- Display: 3.5" color TFT LCD
Mühlen Falcon L75 — Two-Pocket Mixed Bill Counter with Serial Number Capture
Who Is It For?
The Mühlen Falcon L75 is a two-pocket mixed bill counter for businesses that handle large volumes of cash in several currencies every day. Exchange offices and payment companies benefit from automatic recognition of 15 currencies without switching menus, while bank branches, hotels, retail chains and cash-processing centres gain from on-screen and printed records of counted amounts and banknote serial numbers. Suspicious notes are diverted to the upper pocket, so counting continues without interruption.
Key Features and What They Do
- Two-pocket counting: Separates suspicious notes without stopping the count, sorts notes by face and orientation, and keeps denominations apart.
- Automatic currency recognition: Identifies TRY, USD, EUR, GBP, RUB, SAR and the other supported currencies on its own, and can count 5 different currencies at the same time.
- 61-point counterfeit inspection: Dual CIS and 3D technology with 4-direction scanning checks each note; the detection data was updated for counterfeit notes in March 2025.
- Real-time serial number capture: Lists serial numbers on screen or prints them through the RS-232C thermal printer connection.
- Three counting speeds: Choose 800, 1000 or 1200 notes per minute, with an anti-jamming system and batching by quantity or by total amount.
- 3.5" colour TFT display: Paired with an external customer display and audible plus on-screen alerts.
Frequently Asked Questions
Which currencies does the Falcon L75 recognise?
It recognises 15 currencies, including TRY, USD, EUR, GBP, RUB, SAR, SYP, LBP, IQD, IRR, AZN, QAR, KZT, EGP and JOD, counting them in mixed mode.
What are the pocket capacities?
The feed hopper holds 500 notes, the output stacker 200 notes and the reject pocket 100 notes.
Which counting modes are available?
Mixed, First-Note and Single Denomination, in automatic or manual operation.
How is the warranty arranged?
The Mühlen Falcon L75 comes with a 24-month warranty.
Usage and Care Tips
Keep the counterfeit detection data current by updating the software automatically from a USB flash drive. The openable cover and modular design make it easy to clean the transport path, which helps the anti-jamming system run smoothly. Connect the unit to a 100-240V AC, 50/60Hz supply; maximum power consumption is 50W. Use the USB, LAN, RJ11 and RS-232C interfaces to link a printer or network so count reports and serial number lists can be kept on record.
