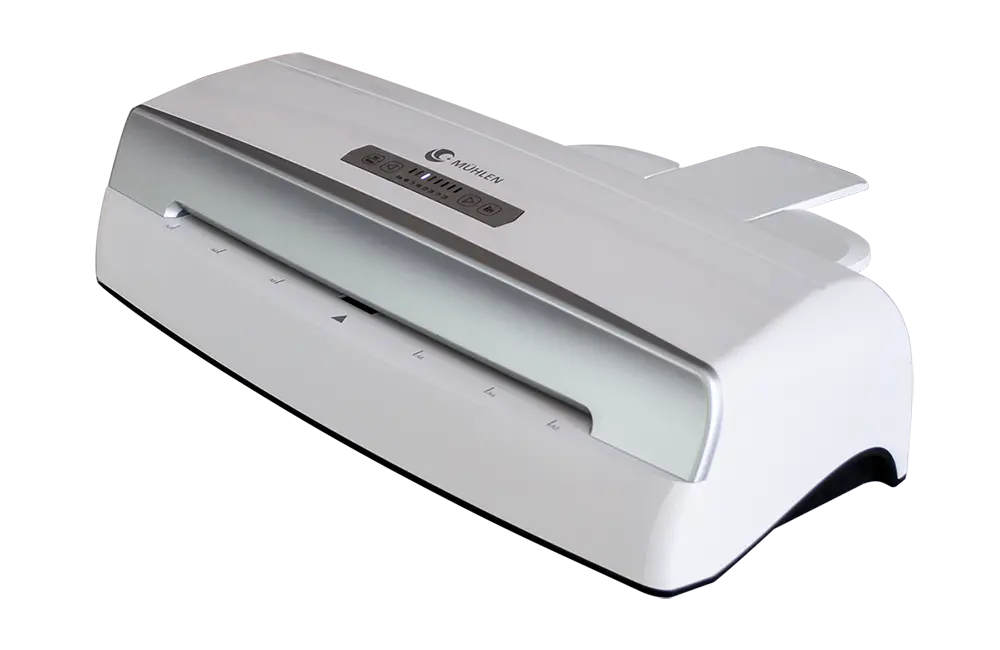

MÜHLEN Elegant VL-602
Fully Automatic A3 Laminating Machine
High-Speed A3-Size Laminating Machine
Designed for A3 and smaller documents with advanced German technology, the VL-602 is the fastest laminator produced to date, coating film at 1500mm per minute. Built especially for heavy-duty use, the model is engineered to perfection down to the smallest detail.
Automatic Film Thickness Detection
Capable of both hot and cold lamination, the model uses "Auto-Sense" technology to automatically detect film thickness between 75~250 microns and adjust its speed and temperature accordingly. Users can also adjust the temperature manually via the touch control panel.
Automatic and Manual Anti-Jam Protection
The MÜHLEN VL-602 model uses fully automatic "Jam-Free" technology, so laminating film never gets jammed or burnt on the rollers under any circumstances. With the "Auto-Reverse" system, any film at risk of jamming is automatically fed back by the machine. In addition, the user can rewind the film inside the machine at any time using the "REW" button.
Special 6-Roller Design
The specially designed 6-roller model laminates in a single, fast pass with excellent gloss and firmness, without wrinkling or scratching. Thanks to the advanced 6-roller system, laminated films are guaranteed to remain waterproof, dustproof and airtight for life.
Creative Design and Touch Control Panel
With its extremely stylish and creative design, the model is complemented by a touch keypad that completes its elegant look. The touch panel also displays the temperature in real time and provides automatic/manual operation, forward/reverse winding and manual heat adjustment buttons.
75~250 Micron Film Coating
Reaching operating temperature and ready to laminate in just 30~60 seconds, the model laminates film between 75~250 microns (x2 = 150~500) with ultra gloss and a smooth finish. The model automatically detects film thickness and adjusts speed and temperature accordingly.
Automatic Standby Mode
With a 334 mm feed inlet width, the machine automatically switches to standby mode when idle, for ease of use and energy savings. It also switches itself off after 30 minutes of inactivity to save extra energy.
Technical Specifications
- Designed for A3-size and smaller pictures, cards and documents
- World's fastest lamination speed at 1500mm/minute
- Ultra-glossy lamination with a 6-roller system
- Automatic film thickness detection and lamination
- Automatic temperature adjustment based on detected film thickness
- "Anti-Jam" technology prevents jamming, sticking and burning
- Ultra-glossy, smooth, durable film coating in a single pass
- Laminates film between 75~250 (x2) microns
- Automatic and manual temperature setting
- Fast warm-up time of 30~60 seconds
- Hot and cold lamination options
- 334 mm feed inlet width
- User-friendly touch keypad
- LED panel showing real-time temperature
- Automatic anti-jam technology
- Special design for heavy-duty use
- Automatic document detection and start
- Manual anti-jam system
- Automatic stop when document finishes
- Manual rewind button
- 24-month warranty
Advantages
- World's fastest lamination
- Automatic film thickness detection
- Coating speed of 1500mm per minute
- For A3-size and smaller documents
- Ultra-glossy lamination with 6 rollers
- Laminates film between 75~250 microns
- Warm-up time of 30~60 seconds
Physical Properties
- Box Dimensions: 583*216*283 mm
- Machine Dimensions: 480*203*127 mm
- Power Consumption: 1400 Watts
- Gross Weight: 8.5 kg
- Net Weight: 6.7 kg
MÜHLEN Elegant VL-602 — High-Speed A3 Laminating Machine with 6 Rollers
Who Is It For?
The MÜHLEN Elegant VL-602 is a high-speed A3 laminating machine for print shops, offices, stationery stores, photo studios and other workplaces with heavy-duty lamination needs. It coats pictures, cards and documents up to A3 with hot or cold lamination. A coating speed of 1500 mm per minute and automatic film thickness detection make it suitable for large batches and repeated jobs where waiting time matters.
Key Features and What They Do
- Auto-Sense thickness detection: The machine recognises film between 75~250 microns (150~500 in total) and adjusts speed and temperature automatically; manual temperature setting is also possible.
- 6-roller system: Produces an ultra-glossy, firm and smooth finish in a single pass, without wrinkles or scratches.
- Warm-up in 30~60 seconds: The VL-602 is ready to laminate almost immediately after switching on.
- Touch control panel: Shows the real-time temperature and provides automatic/manual operation, forward/reverse winding and heat adjustment.
- Jam-Free, Auto-Reverse and REW: Film at risk of jamming is fed back automatically, and the REW button lets you rewind manually at any time.
- Standby and auto power-off: The machine goes into standby when idle and switches itself off after 30 minutes of inactivity.
Frequently Asked Questions
What film thickness does the VL-602 support?
Film between 75~250 microns per sheet; thickness is detected automatically.
How do I remove a film that is about to jam?
Auto-Reverse feeds it back automatically, or press REW to rewind it yourself.
What is the maximum document size?
A3 and smaller, through a 334 mm feed inlet.
How much power does the VL-602 draw, and what is the warranty?
Power consumption is 1400 Watts, and the machine has a 24-month warranty.
Usage and Care Tips
Let the 30~60 second warm-up finish before the first pass, and use film within the 75~250 micron range so Auto-Sense can set the correct speed and temperature. If a jam starts, wait for Auto-Reverse or press REW; never pull the film by hand. Allow the machine to enter standby between jobs to save energy. Because of its 1400 Watt draw, connect it to a suitable socket, and operate the 6.7 kg unit on a stable, level surface.
