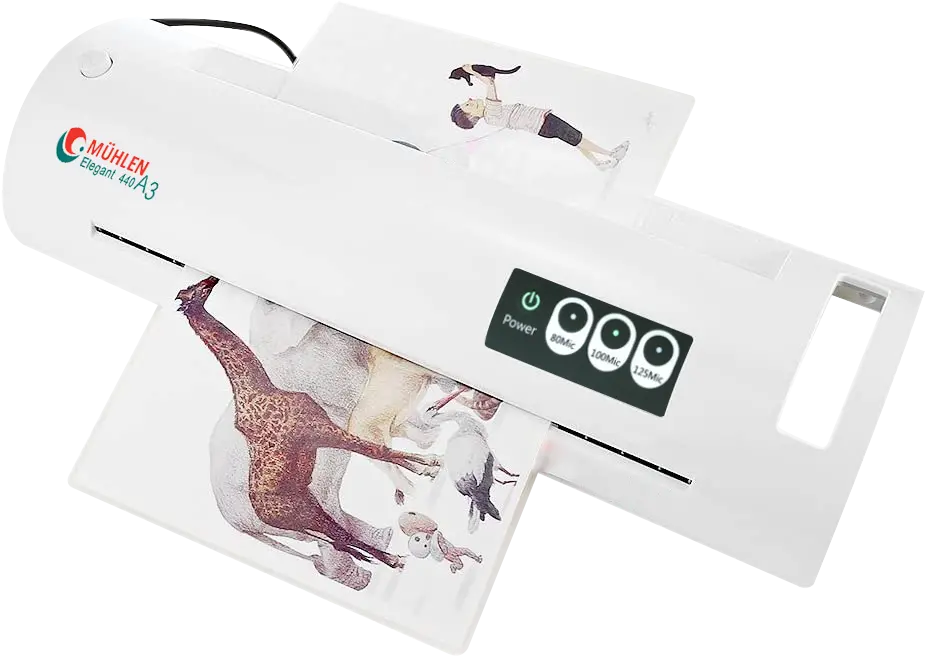

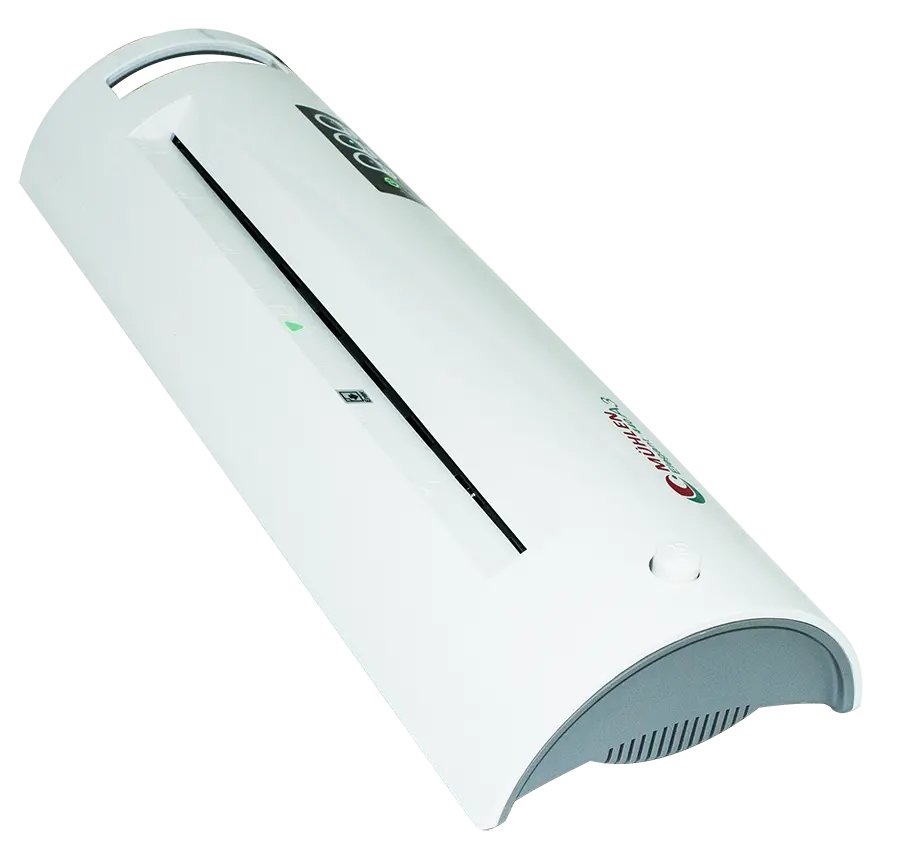

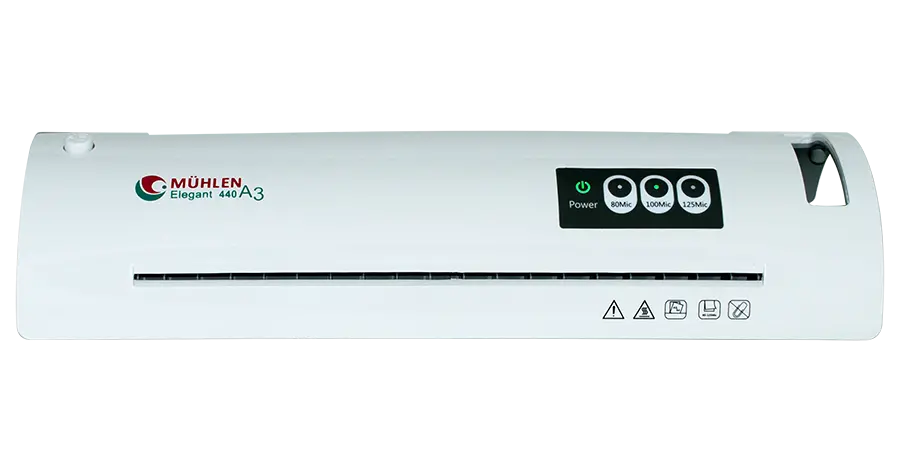

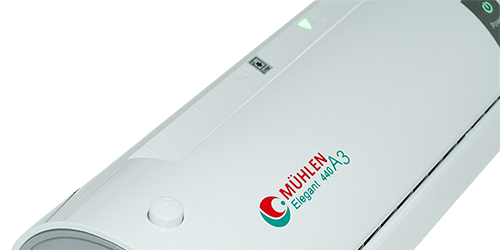

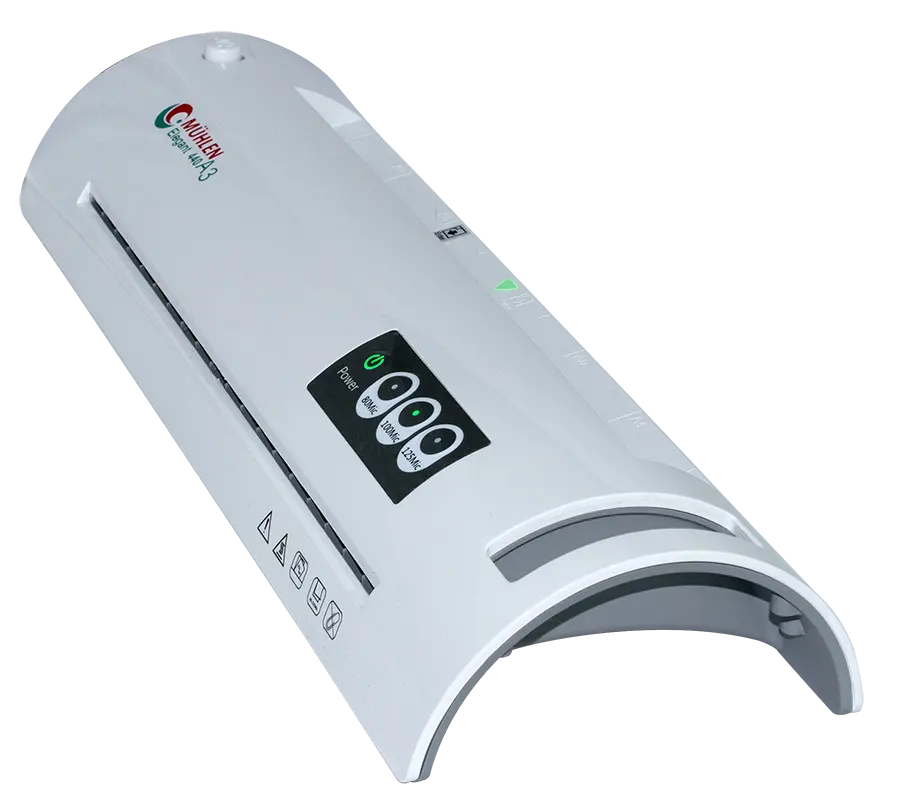

MÜHLEN Elegant 440-A3
Non-Crushing A3 Size Lamination Machine
Won't Burn, Won't Stick
Thanks to its Jam-Free system, the MÜHLEN Elegant 440-A3 does not crush, burn or stick the lamination films.
Easy to Carry & Ergonomic
Extremely powerful and functional, this model is just as easy to use, with a highly ergonomic size for easy portability.
Release Latch
With the “RELEASE” button on the Elegant 440-A3 model, if you ever need to pull a film back out of the machine, it can be easily released using this button.
For A3 and Smaller Films
It laminates A3, A4, A5 ... and smaller documents, providing outstanding protection against water, dust, moisture, impacts and all other external factors.

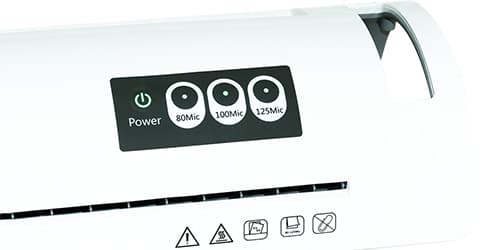

Audible & Visual User Alerts
The machine is equipped with audible and visual warning systems; it alerts the user with sound and light when powered on, when set for cold or hot lamination, and when it reaches the required temperature.
Impressive Speed and Power-Saving Mode
With a lamination coating speed of 500mm per minute, the MÜHLEN Elegant 440-A3 automatically switches to standby mode after 30 minutes of inactivity to save power.
80-100-125 Micron Lamination
In addition to cold and hot lamination coating, the MÜHLEN Elegant 440-A3 uses its 340mm entry width to laminate 80~100~125 micron films smoothly and glossily in a single pass.
Technical Specifications
- Jam-Free system prevents burning and sticking
- Film coating in 80~100~125 micron thicknesses
- 500mm per minute lamination coating speed
- Lamination for A3 and smaller sizes
- 340mm entry width (A3 size)
- Jam-Free system prevents jamming
- Audible and visual warning system feature
- Power On, Cold Lamination
- Standby, Heat Ready
- Fast warm-up time within 1~2 minutes
- Power-saving mode: 30 minutes of inactivity
- Manual retrieval with the release switch
- Easy-carry handle & user-friendly
- Smooth, ultra-glossy and clear coating
- Thickness-based temperature adjustment feature
- High German engineering design
- Cold & hot lamination capability
- PWM heating technology
- Power: 220-240V/50Hz/800W/4A
- Warranty period: 24 months
Advantages
- A3, A4, A5, A6, A7 sizes
- Anti-crush (Jam-Free) feature
- Speed: 500mm/minute
- Audible & visual warning system
- Energy-saving mode
Physical Properties
- Machine dimensions: 467x162x75mm
- Box dimensions: 520x205x115mm
- Net weight: 1.85 kg
- Gross weight: 2.20 kg
MÜHLEN Elegant 440-A3 — Jam-Free A3 Laminating Machine with Quick Warm-Up
Who Is It For?
The MÜHLEN Elegant 440-A3 is a versatile A3 laminating machine for offices, schools, stationery shops, print shops and home users. Through its 340 mm entry it handles A3, A4, A5, A6 and A7 items such as diplomas, certificates, menus, photos and frequently used documents, protecting them against water, dust, moisture and impacts. With a carry handle and a net weight of 1.85 kg, it moves easily from desk to desk, while the cold mode covers heat-sensitive material.
Key Features and What They Do
- Ready in 1~2 minutes: PWM heating technology brings the machine to working temperature quickly and keeps heat control stable.
- 500 mm per minute: A high coating speed shortens waiting time when many documents are laminated in a row.
- Jam-Free system: Designed to stop film from jamming, burning or sticking, reducing wasted pouches.
- RELEASE button: If a film needs to come back out of the machine, it can be released and retrieved by hand.
- Audible and visual alerts: Sound and light signals confirm power-on, the selected hot or cold mode and when the required temperature is reached.
- Power-saving mode: After 30 minutes of inactivity the machine switches to standby automatically.
Frequently Asked Questions
Which film thicknesses can I use?
Films of 80, 100 and 125 microns, with temperature adjustment based on thickness.
What sizes does the Elegant 440-A3 laminate?
A3, A4, A5, A6 and A7, through a 340 mm entry width.
How fast is it ready to use?
The warm-up time is within 1~2 minutes.
What are the power details and warranty?
220-240V/50Hz/800W/4A, with a warranty period of 24 months.
Usage and Care Tips
Select a pouch that fits the document and a thickness that suits the job; 125 micron gives a stiffer result for items that must stand up to handling. Wait for the heat-ready signal before feeding in hot mode, and use cold mode for heat-sensitive photos and prints. If a film needs to be withdrawn, press RELEASE instead of tugging on it. Although the machine enters standby after 30 minutes, switch it off completely at the end of the day. Wipe the inlet occasionally with a clean, dry cloth and store the 467x162x75 mm unit in a dry, dust-free place.
