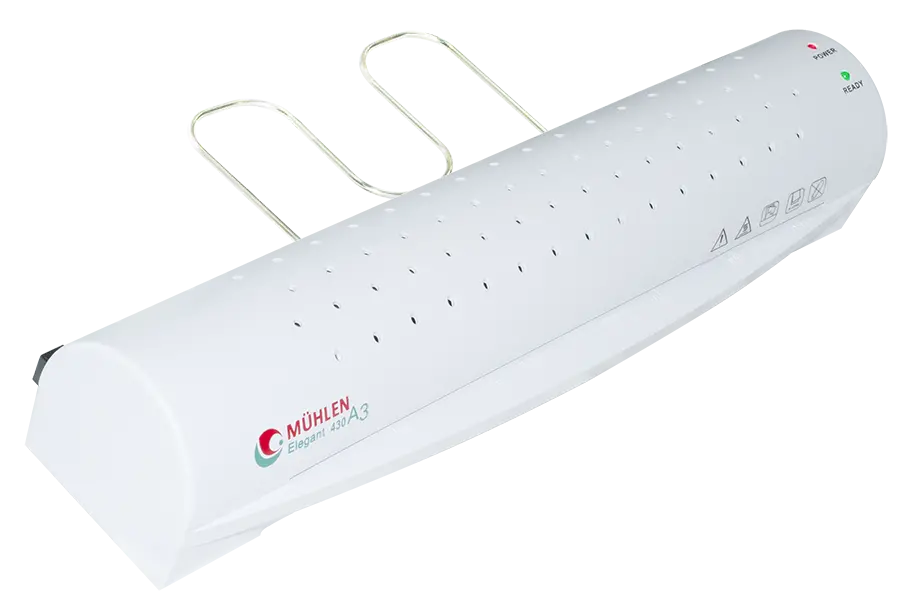

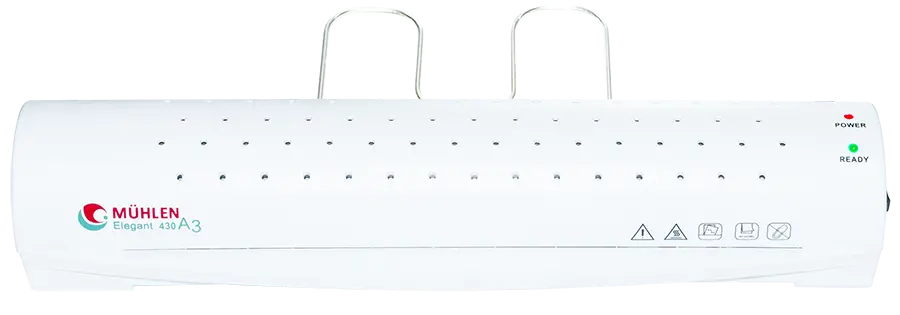

Mühlen Elegant 430-A3
A3 Size Laminating Machine
A3 Film Lamination Feature
The Elegant 430-A3 model can laminate films in A3-A4-A5-A6… (A3 and smaller) sizes and has a feed inlet width of 340 mm.
Home & Personal Use
Extremely easy to carry and use, this model is ideal for homes and small offices with medium to low workloads.
Warm-up Time: ~3-4 minutes
With its fast warm-up time of 3-4 minutes, this model operates with a PWM heating system. Reaching the desired temperature quickly, the machine maintains the set temperature so you can laminate your documents without waiting.
Hot & Cold Lamination
Capable of both hot and cold lamination, the MÜHLEN Elegant 430-A3 offers an impressive speed of 2.5 meters per minute.
80-100-125 Micron Film Lamination
Using the same adjustment switch, the model can laminate films with thicknesses of 80-100-125 microns, and its special rollers apply smooth, glossy PVC film coating.
Illuminated Warning System
A red LED lights up when the machine is powered on, and a green LED indicates when the machine is ready for lamination, providing excellent ease of use.
Jam Release Lever
In case of a jam, the user can easily pull the film back out of the machine using the "jam release" lever.
Technical Specifications
- A3, A4, A5, A6, A7 Film Lamination Sizes
- Easy to Carry, Portable, Compact Size
- 80-100-125 Micron Film Lamination
- Hot & Cold Lamination Capability
- 2 Specially Manufactured Rollers
- Power & Ready Status Warning Lights
- 340 mm Feed Inlet Width
- 250 mm/Minute Lamination Speed
- For Medium & Low Intensity Businesses
- Removable Metal Film Guide
- Temperature Stabilizing Thermostat
- Warm-up Time: 3-4 Minutes
- Smooth, Glossy Lamination
- Document, Photo, Card Lamination
- Manual Jam Release Lever
- 3-Stage Temperature Adjustment Switch
- 0.6 mm Applicable Material
- Power: 220VAC; 50Hz; 400W
- Warranty Period: 24 Months
Advantages
- Film Lamination: A3, A4, A5, A6, A7
- Film Thickness: 80-100-125 Microns
- Number of Rollers: 2 Specially Manufactured
- Feed Inlet: 340 mm
- Lamination Speed: 250 mm/Minute
Physical Properties
- Box Dimensions: 460x120x105 mm
- Machine Dimensions: 426x102x75 mm
- Gross Weight: 1.75 kg
- Net Weight: 1.6 kg
Mühlen Elegant 430-A3 — Portable A3 Laminating Machine
Who Is It For?
The Mühlen Elegant 430-A3 is a portable A3 laminating machine for homes, small offices, schools and stationery shops with low to medium workloads. It laminates documents, photos and cards in A3, A4, A5, A6 and A7 sizes. With machine dimensions of 426x102x75 mm and a net weight of 1.6 kg, it is easy to carry and store, which helps where desk space is limited or the device moves between rooms.
Key Features and What They Do
- PWM heating, 3-4 minute warm-up: The machine reaches the set temperature quickly and holds it, so you can keep laminating without waiting.
- Three film thicknesses: 80, 100 and 125 micron films are handled via the same 3-stage temperature switch.
- Hot and cold lamination: Use hot film for standard documents and cold lamination for heat-sensitive prints.
- Removable metal film guide: Guides the pouch into the 340 mm feed inlet and can be taken off for cleaning.
- Two specially manufactured rollers: Produce a smooth, glossy PVC finish, with a thermostat keeping the temperature stable.
- Status lights and jam release: A red LED shows power, a green LED shows readiness, and a manual lever lets you pull a jammed film back out.
Frequently Asked Questions
Which sizes can the Elegant 430-A3 laminate?
A3, A4, A5, A6 and A7, through a 340 mm feed inlet.
What is the maximum material thickness?
Material up to 0.6 mm can be laminated.
How quickly does it warm up?
Around 3-4 minutes, thanks to its PWM heating system.
What are the power and warranty details?
220VAC, 50Hz, 400W, with a warranty period of 24 months.
Usage and Care Tips
Wait for the green LED, then set the temperature switch to the film thickness you are using: 80, 100 or 125 microns. Do not try to feed material thicker than 0.6 mm. If a pouch jams, use the release lever rather than pulling the film by force. Remove the metal guide from time to time and keep it and the inlet clean so the rollers can produce a smooth finish. Let the machine cool before lifting it back into storage in a dry place.
