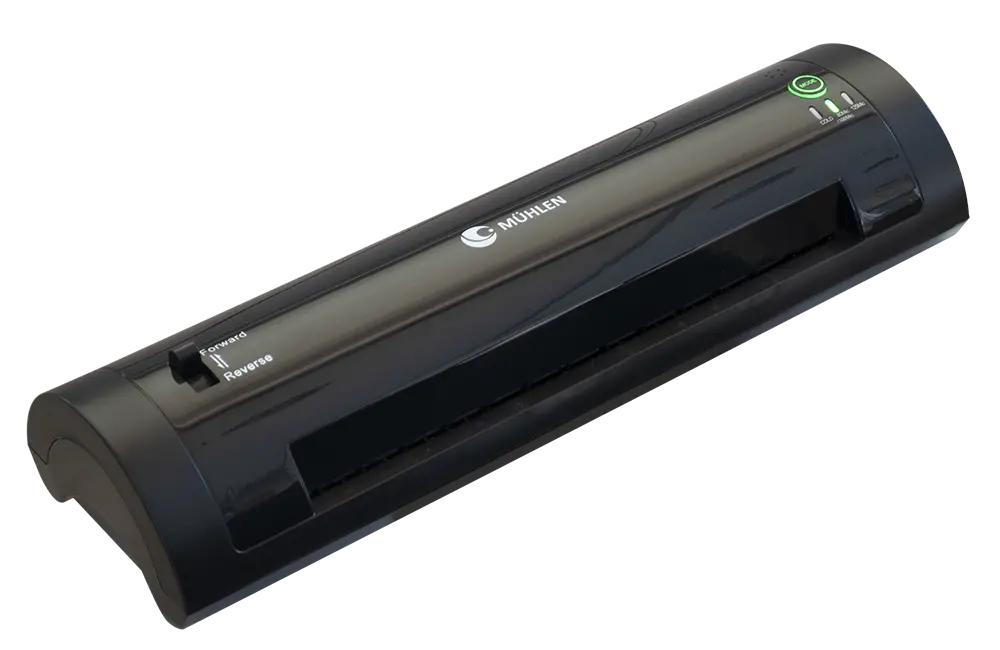

Mühlen Elegant DL 805
Lamination PVC Machine – A3 Size
A3 Size Lamination PVC Coating
With a 328 mm document feed width, the MÜHLEN DL 805 model laminates A3 and smaller documents (A3-A4-A5-A6) in a single pass, producing a smooth, glossy finish thanks to its specially designed roller system.
Economical Model
The MÜHLEN DL 805 is the most economical A3-size lamination machine, designed to deliver flawless performance for many years thanks to its combination of an affordable price and strong performance.
Detail-Oriented German Engineering
The MÜHLEN DL 805 model, built from the finest components, is designed to deliver flawless performance for many years without any loss of quality. Backed by a 2-year warranty, the model is manufactured to run trouble-free for more than 10 years.
Lamination Film Thickness: 80~125 Micron
Thanks to its precise thermostat system, the MÜHLEN DL 805 lamination machine operates within ± 2° of the set temperature. The model also supports lamination film coating between 80~125 microns (80~125×2 = 160~250).
Glossy and Smooth Lamination
With a lamination speed of 300 mm per minute, the model applies a smooth, glossy lamination film in a single pass thanks to its special roller system.
Jam Clearing
To prevent jams, this model — unique in offering front or rear lamination — also lets you easily clear jams using the forward-reverse button.
Dynamic LED Warning System
The MÜHLEN Elegant DL 805 model warns the user in every situation thanks to its dynamic LED warning system. These include a heat indicator light that signals until the machine reaches the required temperature, a green light that stays steady once the temperature is reached, and a power LED that shows the power button is on.
Technical Specifications
- Laminates A3, A4, A5, A6 documents
- Hot and cold lamination film coating feature
- Lamination film coating: between 80~125 microns
- Document feed width: 328 mm
- "MOD" button to select the desired temperature
- Lamination coating speed: 300 mm per minute
- Glossy and smooth lamination film coating
- Front and rear lamination film coating
- Manual anti-jam and jam-release lever
- 2 specially designed roller units
- Warms up and is ready in 3~6 minutes
- LED system for user alerts and warnings
- Precise thermostat level within ± 2° C
- Dual anti-jam system
- Energy savings of up to 30%
- Economical price, ergonomic design
- 24-month warranty
Advantages
- Laminates at 80~125 microns
- Covers A3 and smaller documents
- Ergonomic and economical
- Speed: 300 mm/minute lamination
- Hot and cold lamination
Physical Properties
- Gross Weight: 2.45 kg
- Net Weight: 2.13 kg
- Box Dimensions: 130x190x505 mm
- Machine Dimensions: 80x150x475 mm
Mühlen Elegant DL 805 — A3 PVC Lamination Machine with Precise Thermostat
Who Is It For?
The Mühlen Elegant DL 805 is an A3 PVC lamination machine for offices, schools, stationery shops, photo and print studios and small businesses. It protects A3, A4, A5 and A6 items such as diplomas, certificates, menus, ID cards, children's drawings and reference sheets that are handled often. With a 328 mm document feed width, all standard formats up to A3 pass through in a single run, and the choice of hot or cold lamination covers heat-sensitive documents as well.
Key Features and What They Do
- MOD button with ±2° C thermostat: Select the temperature you need, and the thermostat holds it within ± 2° of the set value for an even coating.
- 80~125 micron film: Works with film from 80 to 125 microns per sheet (160~250 in total), from thin everyday pouches to stiffer card protection.
- Front and rear lamination: Film can be fed from either side, and a forward-reverse button helps clear jams.
- Dual anti-jam system: In addition to the forward-reverse button, a manual jam-release lever frees trapped film.
- Two specially designed rollers: Apply a smooth, glossy finish in a single pass at 300 mm per minute.
- Dynamic LED warnings: A heat light signals during warm-up, a steady green light shows readiness and a power LED confirms the machine is on.
Frequently Asked Questions
Which document sizes does the DL 805 accept?
A3, A4, A5 and A6, through a 328 mm document feed width.
What film thickness should I use?
Lamination film between 80~125 microns per sheet, which equals 160~250 microns in total.
How long until it is ready?
It warms up and is ready in 3~6 minutes; the LED turns steady green.
Can it laminate without heat?
Yes. It offers both hot and cold lamination film coating.
Usage and Care Tips
Switch on, choose the right temperature for your film with the MOD button and wait for the steady green light. Feed the pouch straight into the inlet; use 125 micron film for thicker items and a lower value for thin documents. Let laminated pieces cool on a flat surface before bending or stacking them. If a jam occurs, use the forward-reverse button and the release lever rather than force. Store the 2.13 kg machine in a dry, dust-free place; it comes with a 24-month warranty.
