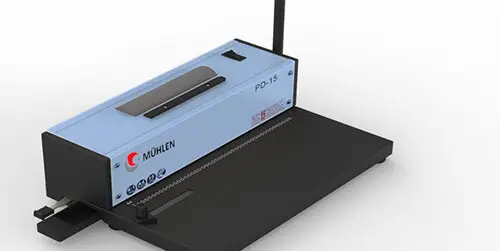

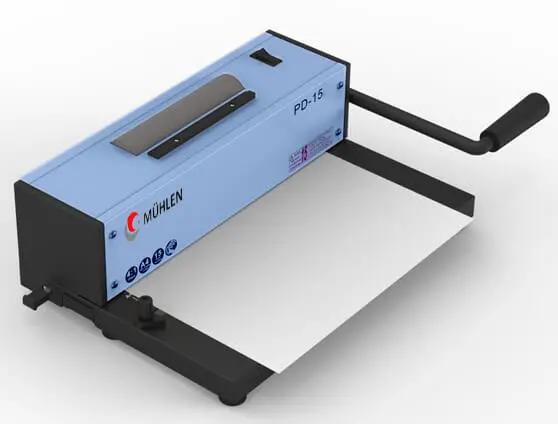

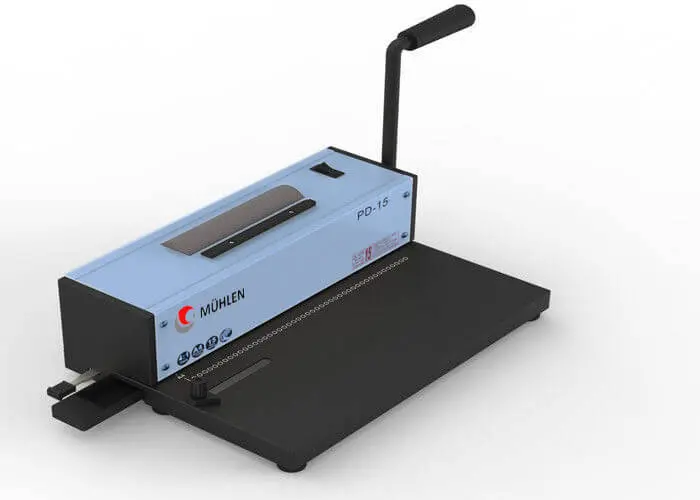

Mühlen PD 15
Electric Coil (Spiral) Binding Machine
Coil (Ring-Spring) Binding
Designed with high-quality German engineering, the MÜHLEN PD15 is the most widely used electric coil (spiral) binding machine for medium and low volume tasks. Capable of quickly forming ring-shaped coil bindings with the help of an electronic motor, this model is built to deliver flawless service for many years.
Widespread Use
One of the most preferred models in its class, the MÜHLEN PD 15 is user-friendly thanks to its easy, practical operation. Economical both in machine cost and in the cost of materials used, this model also features a sturdy body structure that allows it to be used comfortably in any office environment.
Unlimited Binding Diameter
The MÜHLEN PD 15 binding machine, capable of punching 46 holes at once with a Φ 3.5 mm hole diameter, can bind documents of unlimited thickness depending on the material diameter. Fully electric in operation, this model performs the binding process quickly and in a single pass thanks to its motorized binding feature.
15-Sheet Punching in a Single Pass
Thanks to its renewed punching blades, which carry a 5-year warranty, this model can easily punch 15 sheets at once. Its powerful blades ensure flawless, jam-free punching every time. In addition, the highly practical Mühlen PD 15 model features a blade hole size of Φ 3.5 mm.

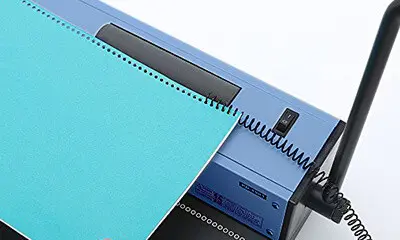

Electric Coil Binding
Thanks to its specially designed electric motor system and winding mechanism, the binding process is completed in a very short time. With its fully electric winding system, the model delivers fast, error-free binding and saves a great deal of time. It has been specially engineered using the latest technologies.
Reinforced Body and Mechanism
Designed for long-term use with an all-metal body and internal working mechanisms made of special steel, this model comes with a 24-month warranty. The machine can be used comfortably throughout the day without any malfunction or corrosion in its components.
5-Year Blade Warranty
With its renewed and extra-reinforced punching blade system, backed by a 5-year warranty, the Mühlen PD-15 binding machine always maintains its first-day performance, delivering flawless and smooth punching every time.
Technical Specifications
- Unlimited-width coil binding with motorized system
- Economical design for medium and low volume use
- Punches 15 sheets at once, A4 size and smaller
- Suitable material size: 4:1 (4 holes per inch)
- Fast binding with electric motor system
- Φ 3.5 mm hole diameter, 46 holes at once
- Fully electronic coil winding system
- Manual, heavy-duty punching lever system
- 3 different margin settings: 3, 5, 7 mm
- Removable waste bin
- Edge-margin paper guide/stopper
- Sturdy steel internal components
- Durable metal body structure
- Operates with a power switch
- Economical price advantage
- 5-year blade warranty
- 24-month warranty
Advantages
- Electronic binding
- Coil (ring) binding
- Punches 15 sheets at once
- Unlimited-width document binding
- Φ 3.5 mm, 46 holes
- 3 different margin settings
Physical Properties
- Machine size: 435*275*200 mm
- Product carton size: 475*310*220 mm
- Net weight: 7.5 kg
- Gross weight: 8.5 kg
Mühlen PD 15 — Electric Coil Binding Machine for Medium and Low Volumes
Who Is It For?
The Mühlen PD 15 electric coil binding machine is designed for medium and low volume work in offices, stationery shops, accounting and law firms, schools and small print shops that bind reports, proposals and presentations on a regular basis. Punching is done with a manual lever, while the coil is wound in by an electric motor, so users skip the slow job of turning coils by hand. It is an economical option in terms of both the machine and the coil material it uses.
Key Features and What They Do
- Electric coil winding: the fully electronic winding mechanism feeds the ring-shaped coil through the holes in a single, quick pass.
- 46 holes in one pass: punches 46 holes of Φ 3.5 mm at once in a 4:1 pitch, meaning 4 holes per inch.
- 15 sheets per punch: the renewed blades punch 15 sheets of A4 size or smaller at a time.
- Unlimited binding thickness: the bound thickness is limited only by the diameter of the coil material you choose.
- Margin settings of 3, 5 and 7 mm: combined with an edge-margin paper guide that stops each sheet in the same position.
- Metal body, steel mechanism: made for use throughout the day, with a removable waste bin for paper chips.
Frequently Asked Questions
Which coil pitch does the PD 15 use?
It is made for 4:1 coil material, which has 4 holes per inch, and punches holes with a Φ 3.5 mm diameter.
How is the machine switched on?
The PD 15 operates with a power switch; the motor then drives the coil winding while punching stays manual.
What paper sizes can I punch?
It punches A4 and smaller documents, up to 15 sheets per pass.
What warranty is included?
The punching blades have a 5-year warranty and the machine itself has a 24-month warranty.
Usage and Care Tips
Split thicker documents into sets of 15 sheets for punching, and set the paper guide and margin before the first set so all holes line up. Pick a coil diameter that suits the total page count. Empty the waste bin regularly. The machine measures 435*275*200 mm and has a net weight of 7.5 kg, so give it a stable place on the desk.
