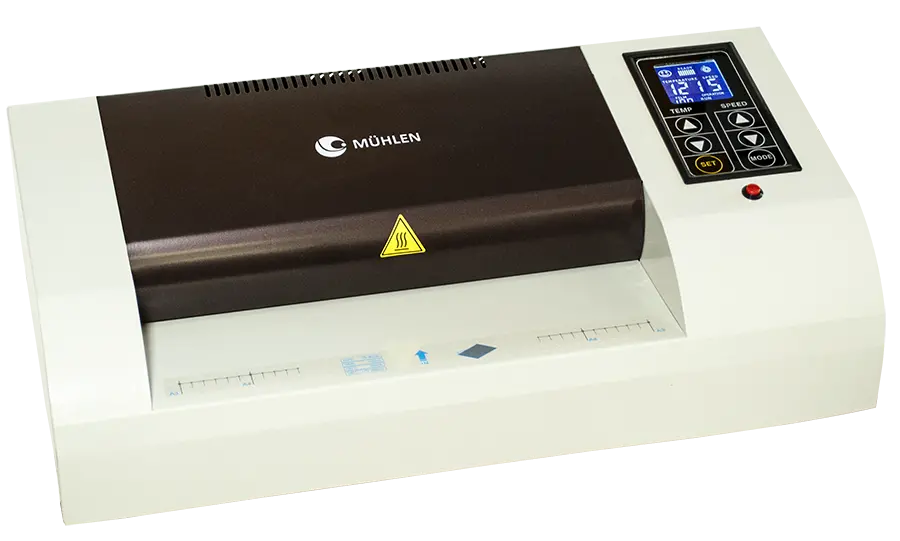

Mühlen Iron 640P-A3
6-Cylinder Heavy-Duty Lamination Machine | A3 Size
The World's Fastest
The model, which has 9 different manually adjustable speed settings, can be set between 550 and 1500/minute. This advantage allows the user to coat thinner lamination films (75~100 microns) much faster. Accompanying this speed, the 6-cylinder system coats the same film 3 times faster than competitors.
A3 and Smaller Lamination
The MÜHLEN Iron 640P-A3 model, which has the ability to coat A3 and smaller (A3, A4, A5, A6, A7) lamination films, coats lamination films in perfect quality and gloss in a single pass. The model, which has a precise heat thermostat, can coat either one large sheet or several small PVC films at once, as desired by the user.
Cold/
Thanks to the digital heat adjustment and the accompanying precise thermostat of the model, which features both hot and cold PVC lamination coating, the temperature can be easily adjusted between 0~160°. In addition, if desired, the user can select from the menu for different thicknesses (Cold-75-100-125-150-175-200-250 Micron), and the machine automatically determines the heat and speed settings on its own.
75~250 Micron PVC Coating
The MÜHLEN Iron 640P-A3 model has the power to flawlessly coat all lamination films between 75~250 microns (x2) at a speed of 1500mm per minute, with a bright and strong lamination finish. Manual selection is available for users who prefer it, while for users who prefer automatic selection, the heat and speed level is set automatically via precise heat and speed sensors.

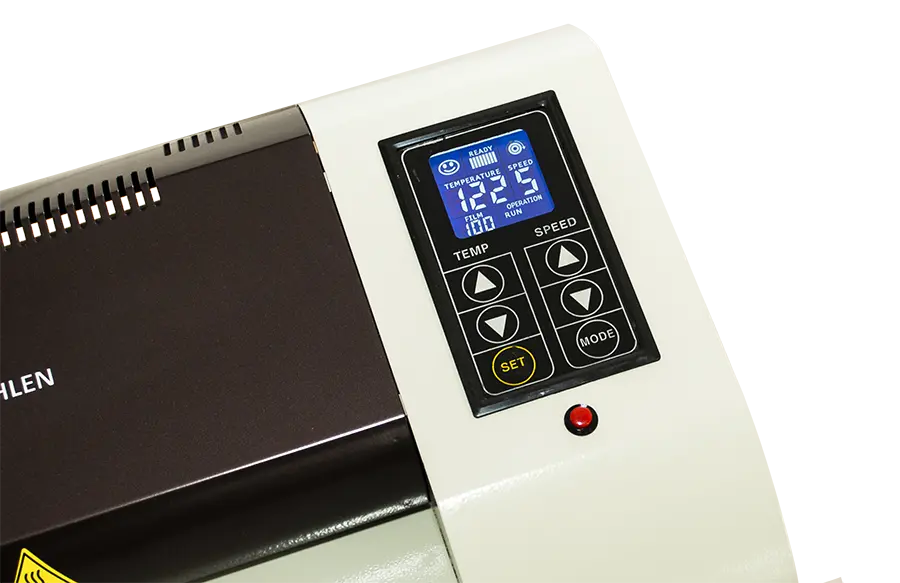

Excellent User Panel
The model, which has precise touchscreen buttons, allows the user to easily adjust heat, speed and other settings, while users who prefer can also select automatic settings from the same panel. In addition, the wide LCD screen displays information such as speed, target heat, current heat, hot/cold lamination, forward/reverse direction, film thickness and standby mode, and lamination can be cancelled and the film retracted with the help of the red button just below the panel.
6 Cylinders / Continuous Use
The internally heated 6-quartz-cylinder system, patented by our company, has a diameter of 29mm. This system provides highly precise, bright, strong and fast lamination film coating throughout the day. In addition to the automatic jam-prevention system, it also has an easy-open latch system for cleaning the dust that accumulates on the cylinders over time.
Internal Heating & Standby Mode
The model, which has an internally heated cylinder structure, features an automatic standby mode for low energy consumption and high performance. The model automatically switches itself into standby mode when not used for half an hour. The model has a maximum document shredding capacity of 1.5mm (15 sheets) thickness and a 330mm document feed opening.
Technical Specifications
- Professional for A3 size, 6-cylinder continuous use
- Precise digital automatic/manual heat adjustment between 0~160°
- Coats A3 size and smaller lamination film (A4, A5…)
- 9 different digital speed levels between 500~1500/minute
- PVC lamination coating between 75~250 microns (x2)
- Patented latch-release removable 6-cylinder system
- Patented internally heated quartz cylinder structure
- Cold and hot lamination PVC coating feature
- Automatic document feeding and lamination
- Digital precise thermostat and heat adjustment system
- Unique bright and strong lamination coating
- Automatic standby mode for energy saving
- Multi-row wide LCD display screen
- 330mm input feed opening width
- Maximum document thickness: 1.5mm
- One-button cancel and reverse
- 8 different automatic PVC mode settings
- Fully metal body and components
- Max power consumption: 1200 Watt
- Touchscreen user panel
- Initial warm-up time: 5~8 minutes
- 29mm cylinder diameter
- 24-month warranty
Advantages
- 6-piece latch cylinder structure
- 29mm internally heated cylinder
- Wide LCD user panel
- 9 different speed level settings
- Heavy workload | A3, A4, A5, …
Physical Properties
- Gross weight: 22.5kg
- Net weight: 17kg
- Box dimensions: 665*465*295(mm)
- Machine dimensions: 492*320*160(mm)
Mühlen Iron 640P-A3 — Heavy-Duty Laminator with 6 Quartz Rollers
Who Is It For?
The Mühlen Iron 640P-A3 is a heavy-duty laminator for businesses that run lamination jobs continuously throughout the day in A3 and smaller formats such as A4 and A5. Print shops, copy and office service points, stationery stores, schools and corporate offices that regularly protect documents, business cards or certificates benefit from its 6-cylinder system and all-metal body and components. It can coat one large sheet or several small films in a single pass.
Key Features and What They Do
- Six internally heated quartz rollers: The patented 29 mm cylinders deliver a bright, strong finish all day and open with a latch so accumulated dust can be cleaned off.
- Hot and cold PVC coating: Temperature is set digitally between 0 and 160°, and 8 automatic PVC modes choose heat and speed for each film thickness from cold to 250 microns.
- 9 speed levels up to 1500 mm per minute: Thinner films of 75–100 microns can be run much faster, while thicker films get a slower, controlled pass.
- Touchscreen with wide LCD: Speed, target and current heat, hot/cold mode, direction, film thickness and standby status are shown at a glance; a red button cancels the job and retracts the film.
- Energy-saving standby: If the machine is not used for half an hour, it switches itself into standby automatically.
Frequently Asked Questions
Which film thicknesses does the Iron 640P-A3 accept?
It coats PVC lamination films between 75 and 250 microns (x2), in either manual or automatic mode.
How thick can a document be?
The 330 mm feed opening accepts documents up to 1.5 mm thick.
How long does the first warm-up take?
Allow 5 to 8 minutes for the initial warm-up; maximum power consumption is 1200 W.
Is there protection against jams?
Yes. The roller system includes automatic jam prevention, and the red button lets you stop and reverse at any moment. The machine has a 24-month warranty.
Usage and Care Tips
Wait for the full warm-up before the first pass and pick the PVC mode that matches your film, or set heat and speed manually if you prefer. Use the latch-release roller system regularly to clear dust from the cylinders, which keeps the finish clean. Respect the 330 mm width and 1.5 mm thickness limits, and let the machine fall into standby between jobs rather than leaving it at full heat.
