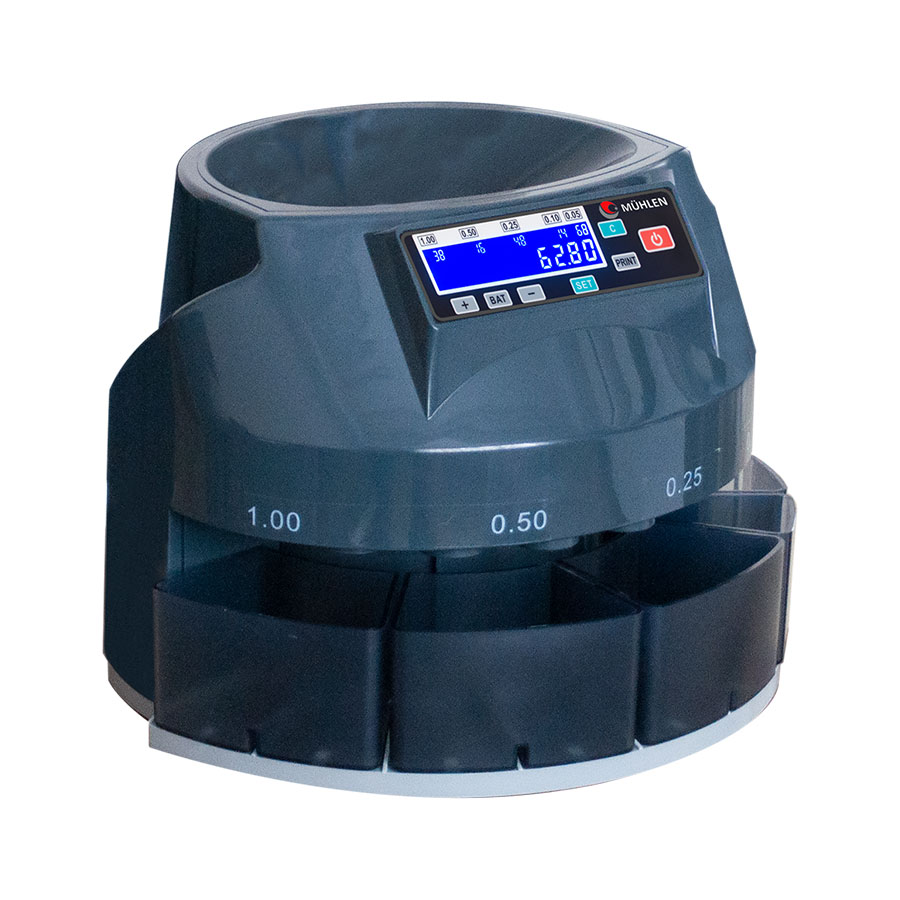

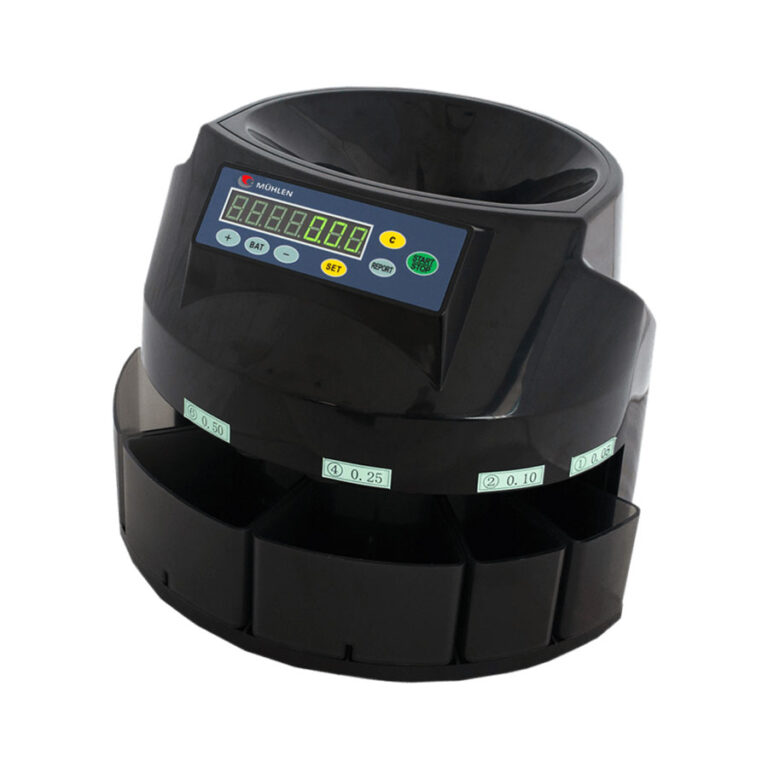

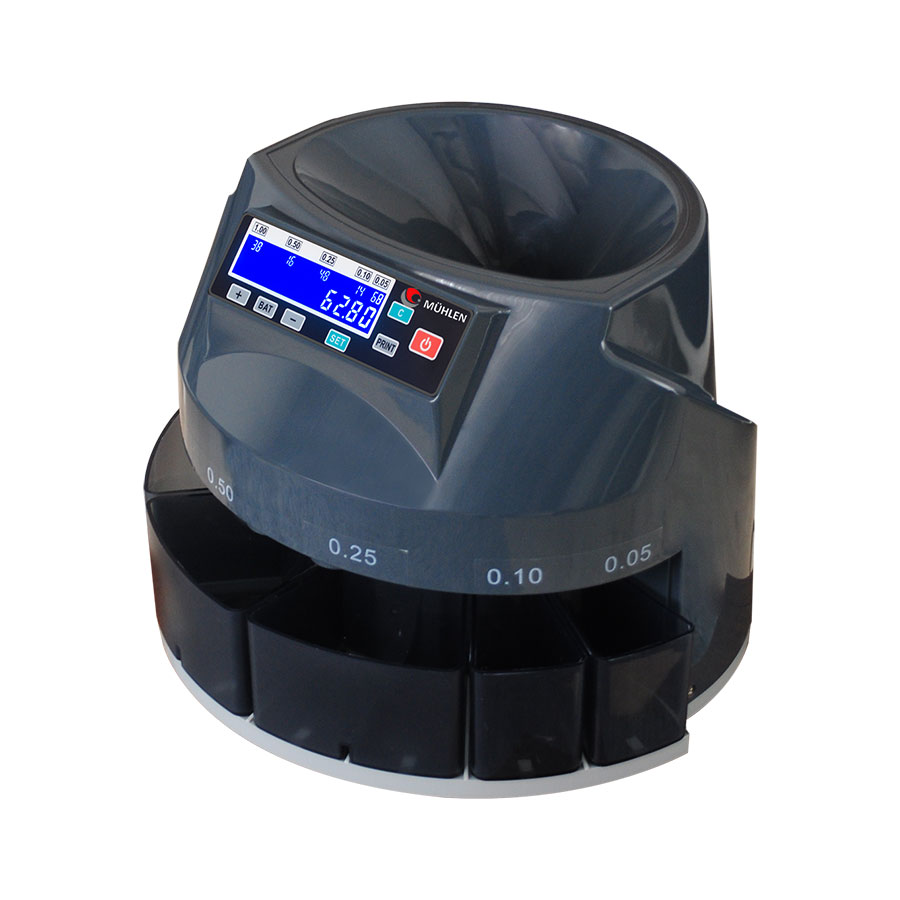

Mühlen Münzen 3
Coin Counting Machine That Can Now Count the New 5 TL Coin
THE NEW COIN COUNTER THAT CAN COUNT THE 5 TL COIN
With the 2024 update, the MÜHLEN Münzen 3 counts and sorts coins including the new 5₺ as well as 1₺, 0.50₺, 0.25₺, 0.10₺, and 0.05₺. It counts coins placed into the machine in mixed form using the "START" button, sorting them, distributing them into separate bins, batching them, and displaying both the detailed counting report and the total count on a single screen.
REAL-TIME REPORTING FEATURE
With its wide dual-row LCD display system, the MÜHLEN Münzen 3 shows both the total count and the detailed counting report on the same screen at the same time. This time-saving feature also eliminates confusion, making it an extremely user-friendly model. While showing the quantity of each denomination on a single screen, the machine also displays the grand total on the same screen.
FAST COIN COUNTING FEATURE
The MÜHLEN Münzen 3, with a coin counting speed of over 600 coins per minute, also operates with extremely low noise. With its new version, both the motor and the moving parts have been designed to be extremely robust and trouble-free for many years.
PRINTER CONNECTION FEATURE
The MÜHLEN Münzen 3 coin counting machine has printer connectivity and can produce a paper printout via the "PRINT" button on its control panel. Fully compatible with the separately purchased MÜHLEN Printer 2 model, it prints out the total count and the quantity of each coin denomination on paper.
PRECISE AND ERROR-FREE COUNTING
With its newly developed counting system, the MÜHLEN Münzen model measures coins by width and diameter in three dimensions, delivering 100% accurate counting results with zero margin of error. In addition, its grooved feed system ensures the correct flow and ordering of coins, while its fan system suctions away the dust carried by the coins, keeping the counting sensors clean at all times.

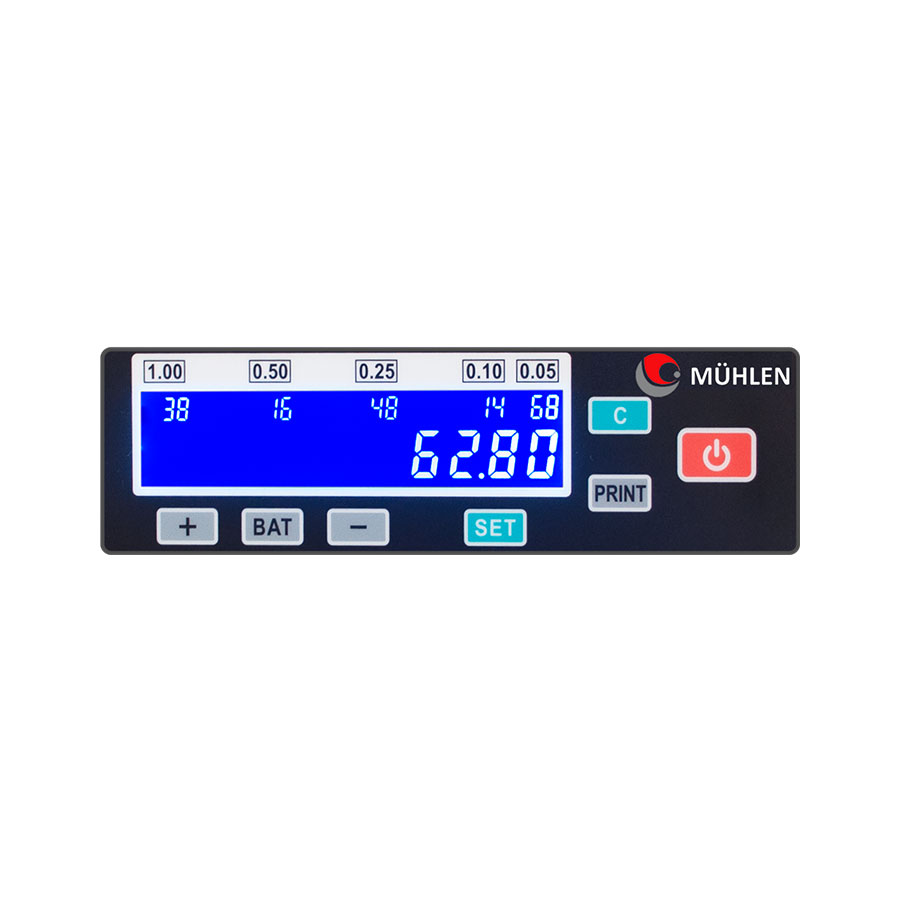

WIDE DUAL-ROW LCD DISPLAY
Thanks to its wide dual-row LCD display, the machine shows both the counting details and the total count on a single screen, and also allows batching settings of 1-999 for every denomination from the same screen. This highly user-friendly model displays the detailed count quantities on the upper line of the screen and the total count value on the lower, main line.
LONG-LASTING ELECTROMECHANICAL COMPONENTS
With its renewed and improved mechanical system, the MÜHLEN Münzen 3 has been made far more durable, and thanks to its upgraded electronic circuits and sensors, it is designed to run for many years with its first-day performance, without faults or the need for maintenance. Backed by a full 24-month warranty, the machine has a service life of at least 10 years or more depending on usage conditions.
Technical Specifications
- Coin counting and sorting feature (5₺, 1₺, 0.50₺, 0.25₺, 0.10₺, 0.05₺)
- Displays the total count and detailed list on a single screen
- Dual-row wide blue LCD screen showing all details on one display
- Ability to connect to a printer and print a counting report
- Fully compatible operation with the MÜHLEN Printer 2 model
- Printer is not included with the product. Available for separate purchase
- Automatic start and stop counting feature
- The fastest in its class with a counting speed of 600/minute
- 100% accurate counting results with its renewed system
- Measures the width and diameter of coins thanks to its 3D feature
- Smart chip system that warns the user of errors
- Self-cleaning feature with a dust suction system
- Electromechanical system developed for heavy-duty use
- Batching feature: sets each denomination between 0 and 999
- Feed hopper capacity between 1000 and 1500 coins
- Storage bin capacity between 250 and 500 coins
- 24-month full warranty
Advantages
- Can connect to a printer to obtain reports
- Displays the full report on a single screen
- Counting speed of 600 coins per minute
- Wide dual-row LCD display
- Long-lasting internal components
Physical Properties
- Package Dimensions: 373 x 377 x 315 mm
- Net Dimensions: 355 x 330 x 266 mm
- Gross Weight: 4.50 kg
- Net Weight: 3.55 kg
MÜHLEN Münzen 3 — Coin Counting Machine with Printer Connection
Who Is It For?
The MÜHLEN Münzen 3 coin counting machine suits supermarkets, corner shops, kiosks, restaurants, bank branches, coin box collection points and any cash-intensive business. Mixed coins are poured in and, at the press of START, the machine counts them, sorts them into separate bins and batches them. With the 2024 update it also handles the new 5₺ coin. Businesses that need written records of their counts can add a printer for paper reports.
Key Features and What They Do
- Counting speed up to 600 coins per minute: speeds up end-of-day cash counts with low running noise.
- Wide dual-row LCD: the upper line shows the detailed quantity per denomination, while the lower main line shows the grand total.
- Printer connection: the PRINT button outputs the total and the quantity of each denomination on paper with the MÜHLEN Printer 2, which is sold separately.
- 3D coin measurement: the counting system measures each coin's width and diameter, and a grooved feed keeps the coins flowing in the correct order.
- Dust suction fan: draws off dust carried in with the coins to keep the counting sensors clean.
- Batching up to 999 per denomination: set from the same screen; the feed hopper takes 1000 to 1500 coins and each storage bin 250 to 500.
Frequently Asked Questions
Does the Münzen 3 count the new 5₺ coin?
Yes. Since the 2024 update it counts and sorts the new 5₺ coin together with the other Turkish lira coins.
Is a printer included?
No. The printer is not included; the MÜHLEN Printer 2 can be purchased separately and works fully with the machine.
Will the machine alert me to errors?
Yes. A smart chip system warns the user of errors, and counting starts and stops automatically.
What are its dimensions, weight and warranty?
Net dimensions are 355 x 330 x 266 mm, net weight is 3.55 kg, and it comes with a 24-month full warranty.
Usage and Care Tips
Keep each load within the feed hopper capacity and empty the storage bins before they fill up. Although the fan removes much of the dust, clean the coin path at intervals to keep readings reliable. Check the report on the upper display line, or print it, before clearing a count.
